Firing Order & Distributor Rotation (2.2L & 2.5L)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 1994 Plymouth Sundance, 1994 Plymouth Laser, 1994 Plymouth Acclaim, 1994 Eagle Vision, and 1994 Eagle Talon. However, it is still accessible from the selected car via links, so may be relevant.

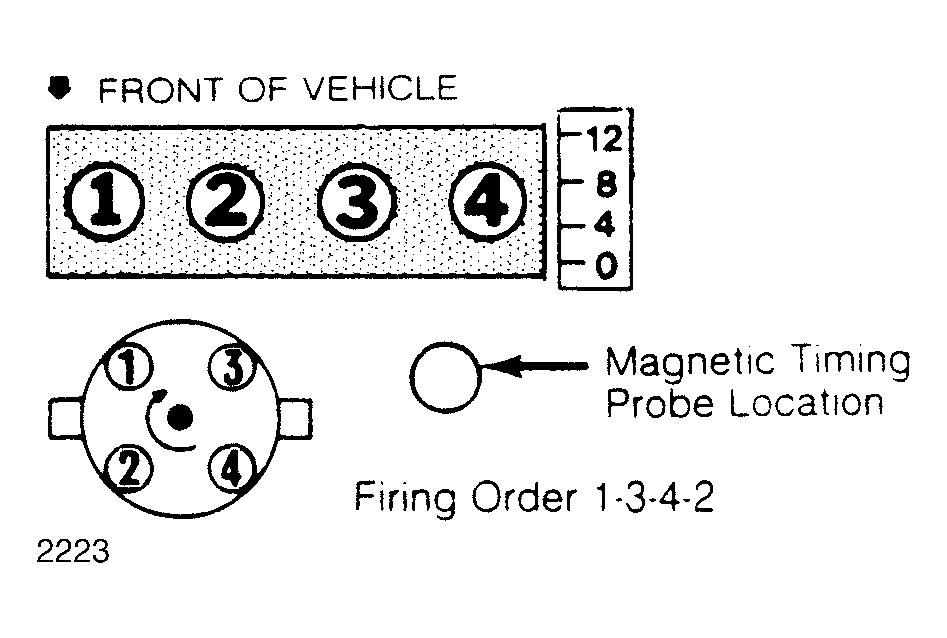

Fig 1: Firing Order & Distributor Rotation (2.2L & 2.5L)
G2223Courtesy of CHRYSLER CORP.
