Front Brake Caliper & Brake Pads: Removal
- Drain about half of brake fluid from master cylinder reservoir. Raise and support vehicle. Remove front wheels.

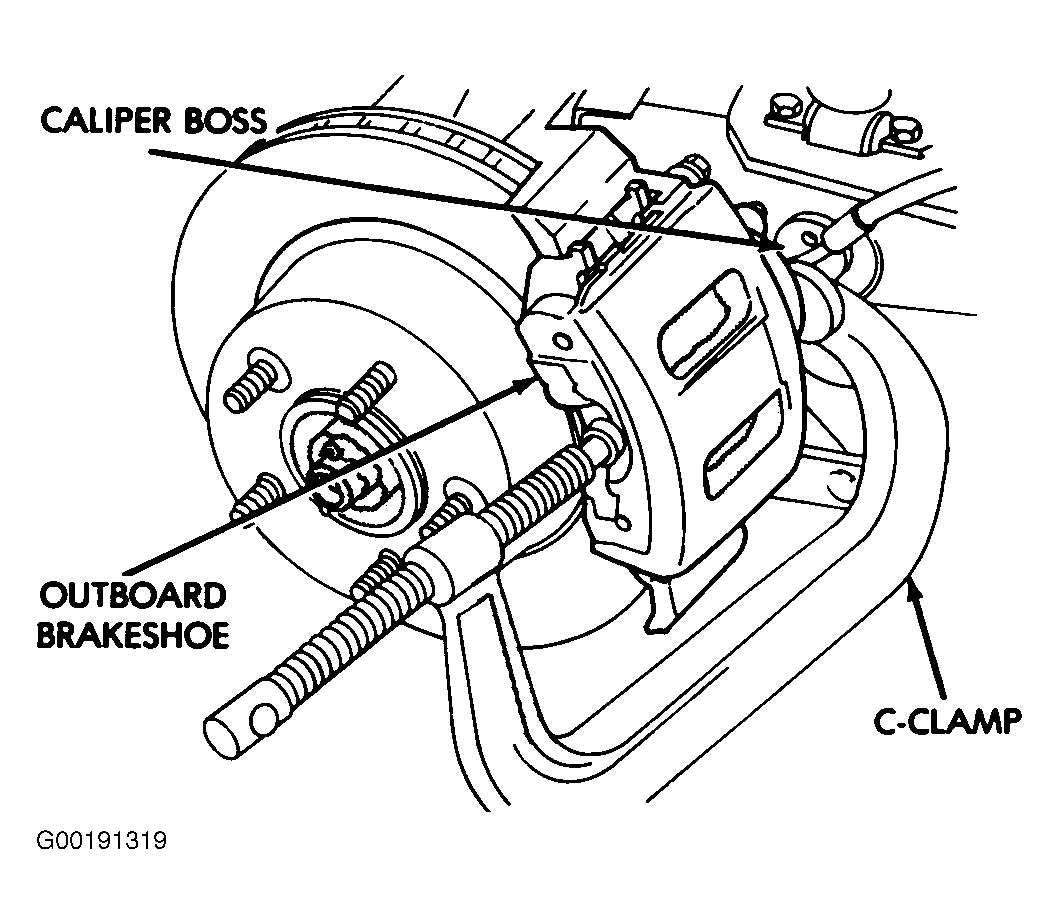

- Place "C" clamp on caliper. Solid end of clamp should contact back of caliper. See Fig 1 . Screw end should contact metal part of outboard pad. Tighten "C" clamp until piston is forced to bottom of bore. DO NOT allow "C" clamp screw to bear directly on outboard shoe retainer spring. If necessary, use wood or metal spacer between pad and "C" clamp screw.

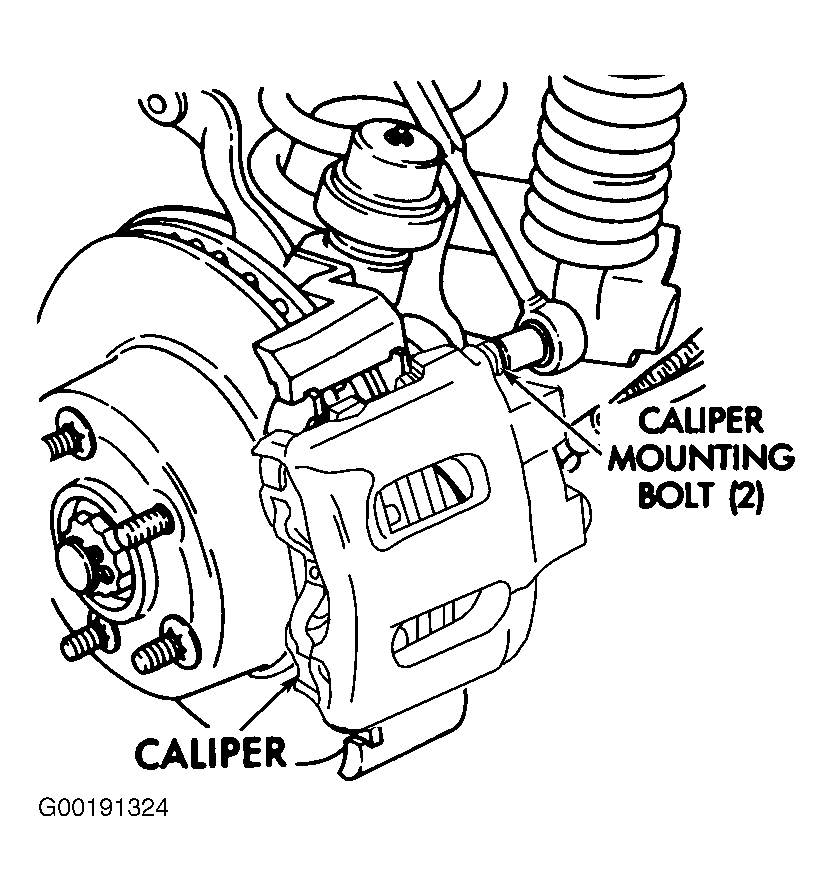

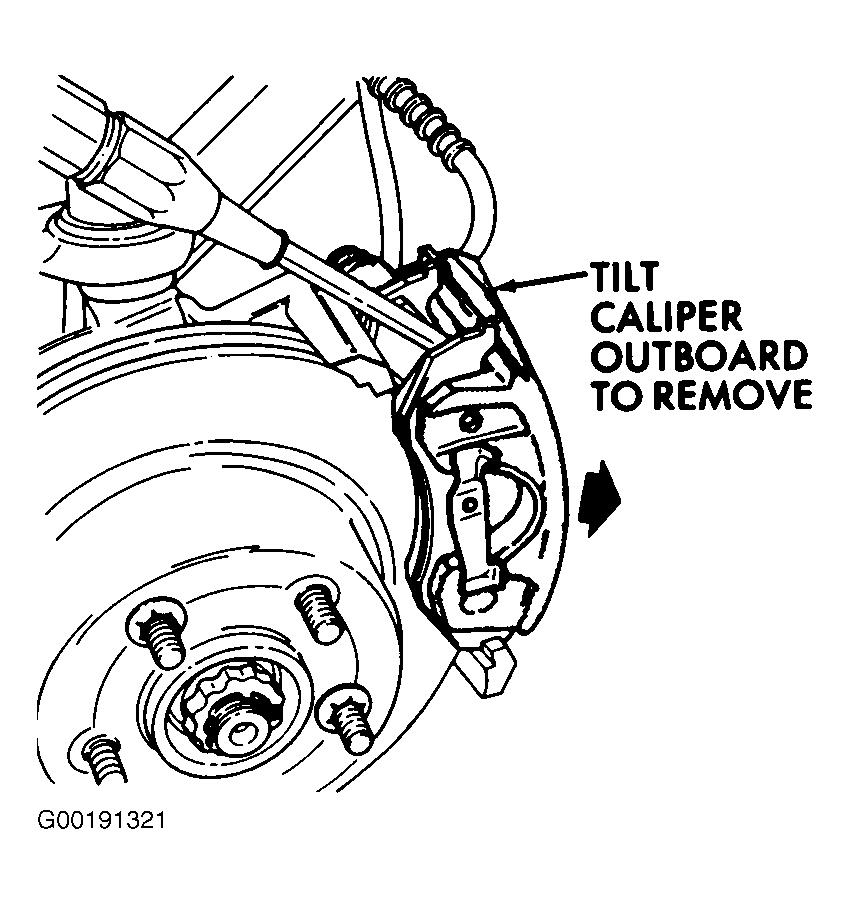

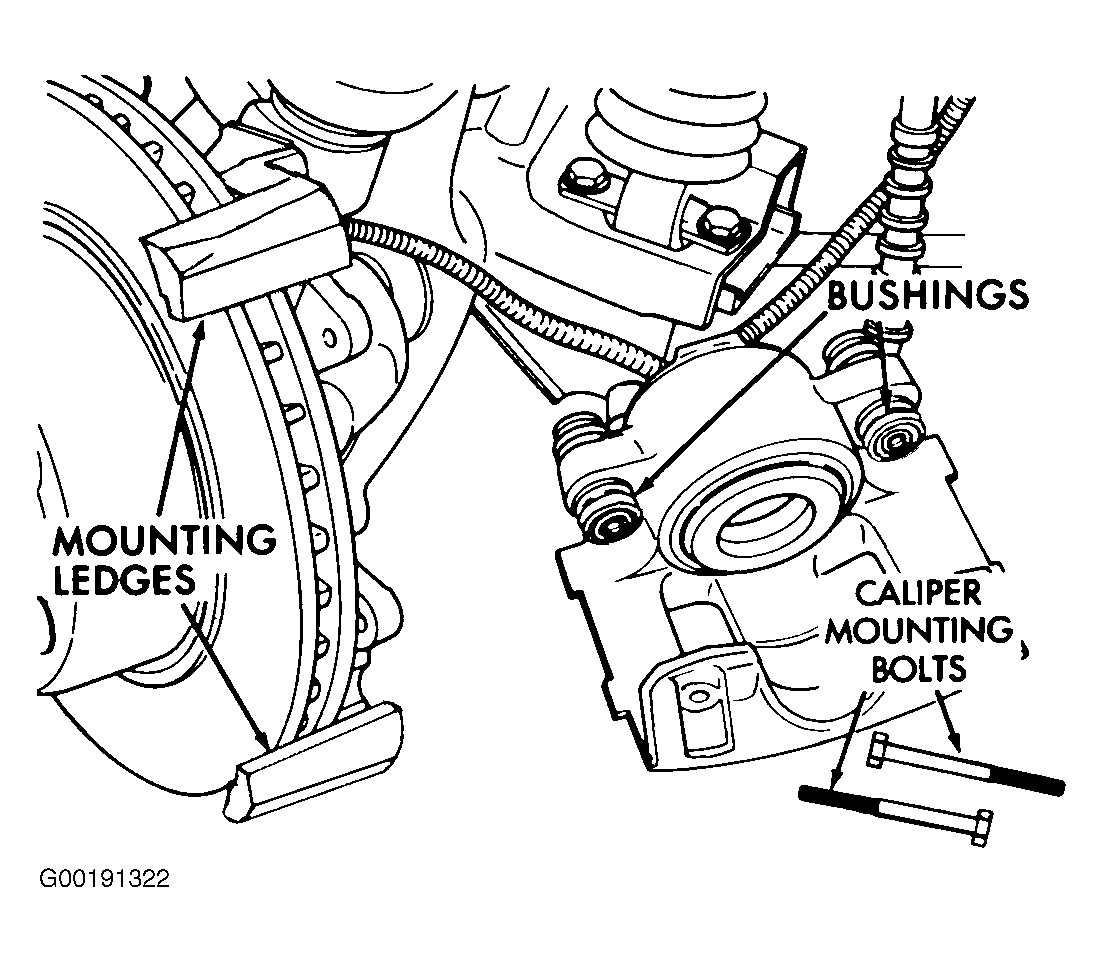

- Remove caliper mounting pins/bolts. See Fig 2 . Using a screw driver, tilt caliper outward to remove. See Fig 3 . Lift caliper off rotor and anchor plate mounting ledges. See Fig 4 . Brake pads will remain attached to caliper. If caliper is being removed to gain access to other components, suspend caliper with wire from suspension. DO NOT allow brake hose to support caliper.

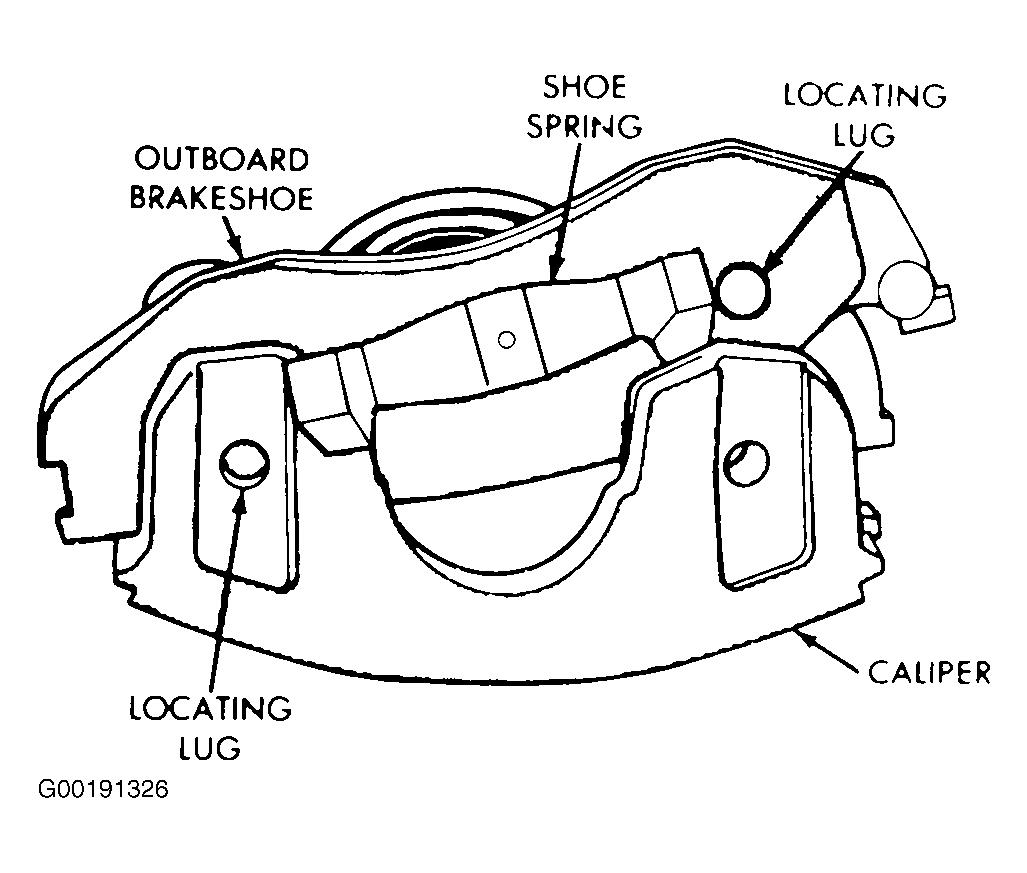

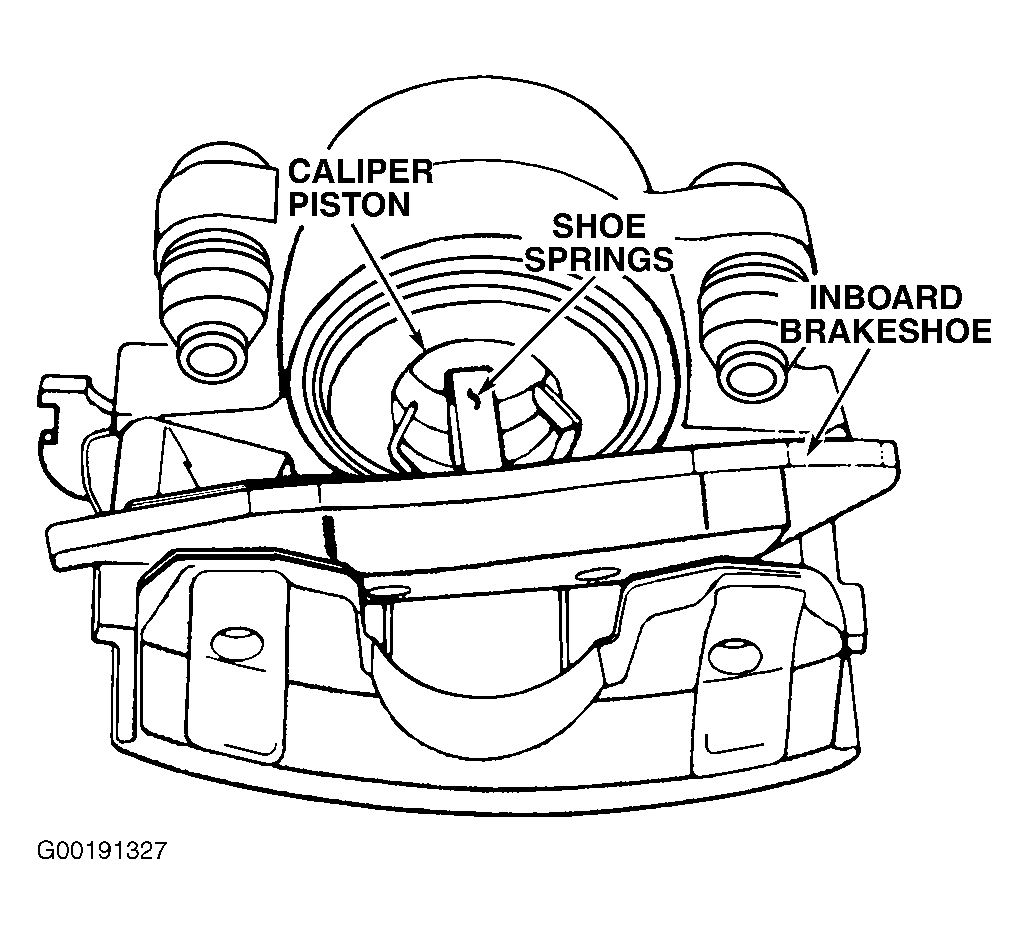

- Press one end of outboard pad inward to disengage pad lug, and rotate shoe outward until retainer spring clears caliper. See Fig 5 . Press opposite end of pad inward to disengage opposite pad lug, and rotate pad up and out of caliper. To remove inboard pad, grasp ends of pad and tilt pad outward to release springs from caliper piston. Remove pad from piston. See Fig 6 .

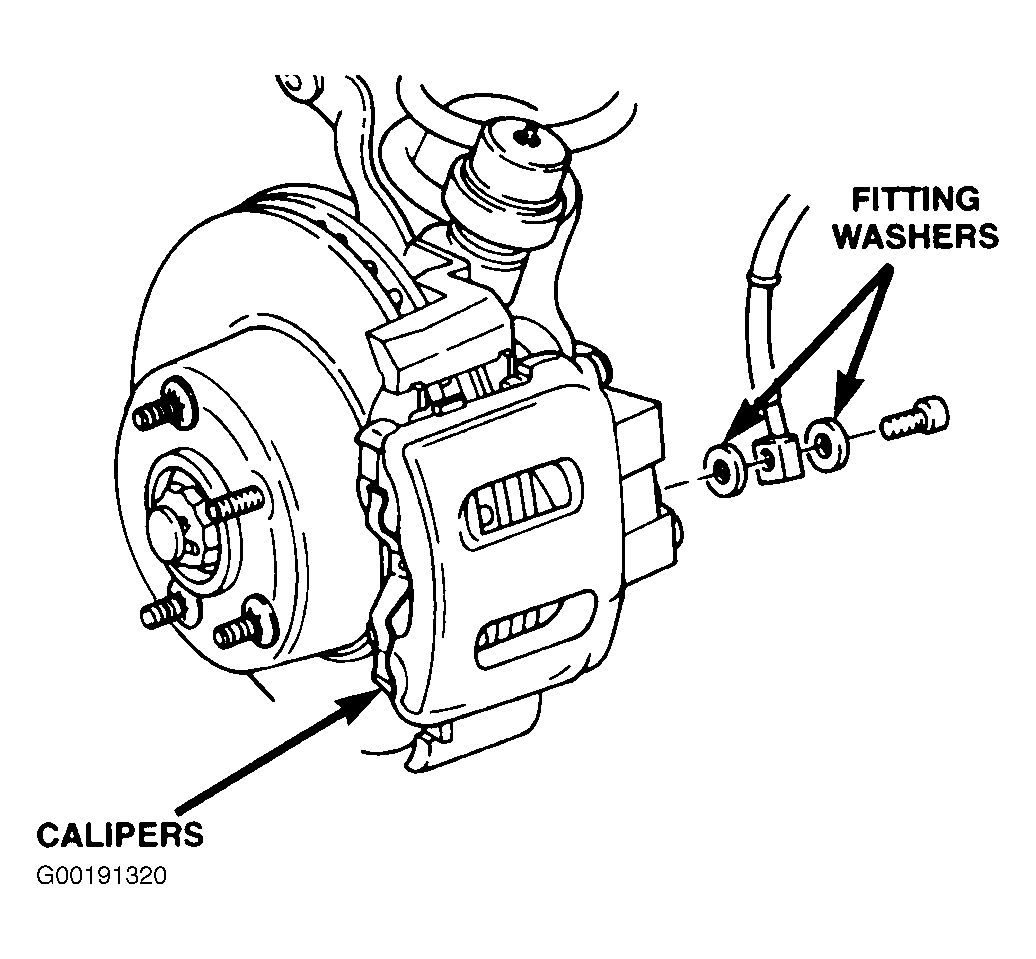

- Disconnect brakeline at caliper. See Fig 7 Plug caliper and hose openings to prevent contamination. Remove caliper from vehicle.
NOTE:
If new caliper bolts are being installed or if reason for repair is to correct a drag or pull, check caliper bolt length. Correct caliper bolt shank length is 2.61-2.66" (66.4-67.6 mm) and thread length is 0.87" (22 mm). See Fig 8
. If caliper bolts are too long they will contact inboard pad and cause a partial apply condition.
