Front Brake Caliper & Brake Pads: Installation

1. To install, reverse removal procedure. See Fig 1 . Apply a light coat of multipurpose grease to caliper sliding surfaces. Lubricate caliper mounting pins and bushings with silicone grease.
2. Tighten caliper mounting pins to specification. See TORQUE SPECIFICATIONS  . Add brake fluid to reservoir. Apply brakes until brake pedal is firm. Check brake fluid level.

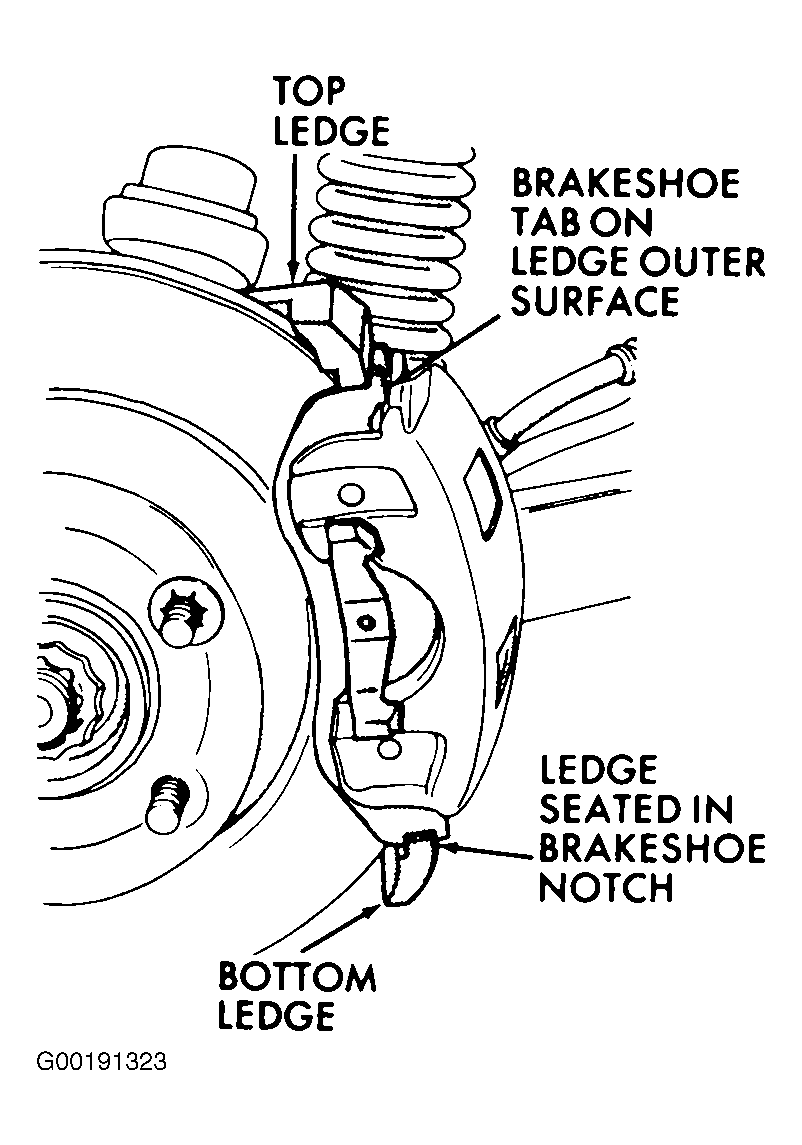

Fig 1: Installing Brake Caliper

Courtesy of CHRYSLER CORP.
