Grand Wagoneer

Disconnect negative battery cable. Unsnap tabs that hold instrument panel bezel to instrument panel and remove bezel. Remove screws attaching instrument cluster to panel. Pull instrument cluster outward and disconnect speedometer and cluster wire harness connectors. Remove instrument cluster. See Figure through Figure . To install, reverse removal procedure.

Fig 1: Grand Wagoneer Printed Circuit Board

Courtesy of CHRYSLER MOTORS.

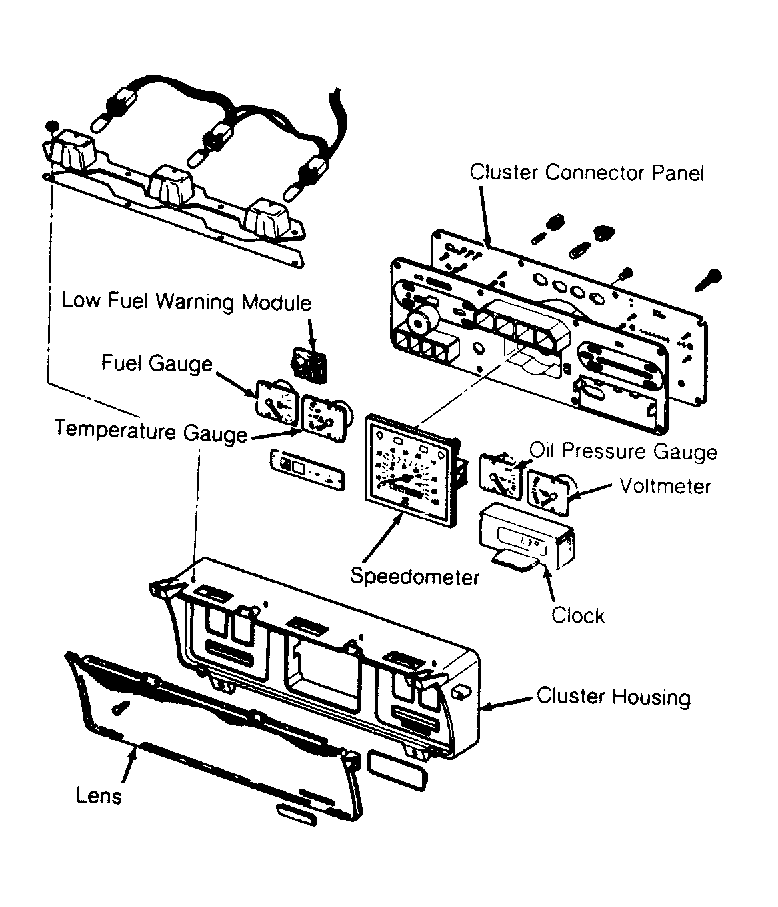

Fig 2: Grand Wagoneer Instrument Panel (Exploded View)

Courtesy of CHRYSLER MOTORS.

Fig 3: Grand Wagoneer Instrument Cluster Connector Identification

Courtesy of CHRYSLER MOTORS.
