Gauges & Instrument Panels: Testing: Notes

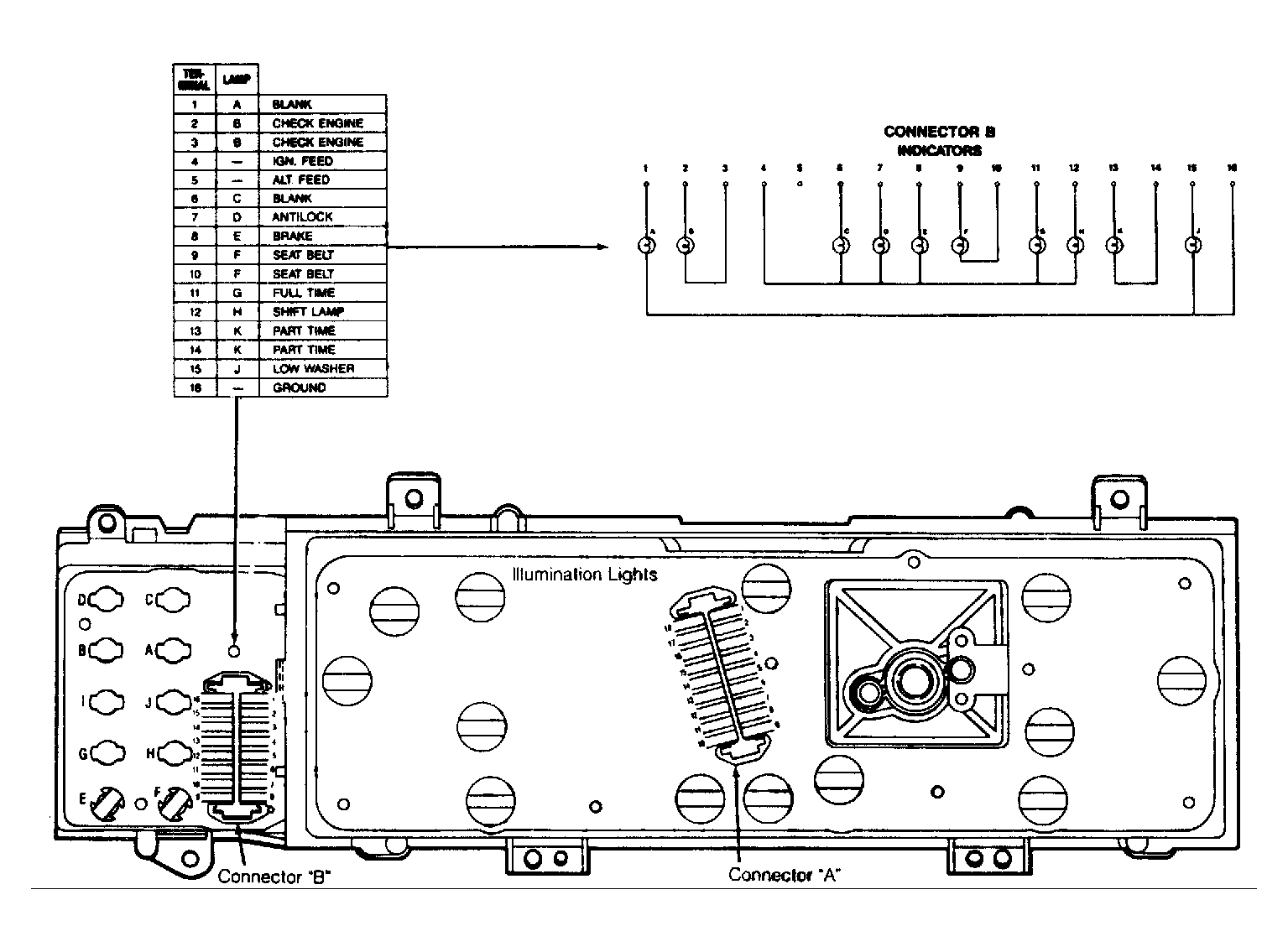

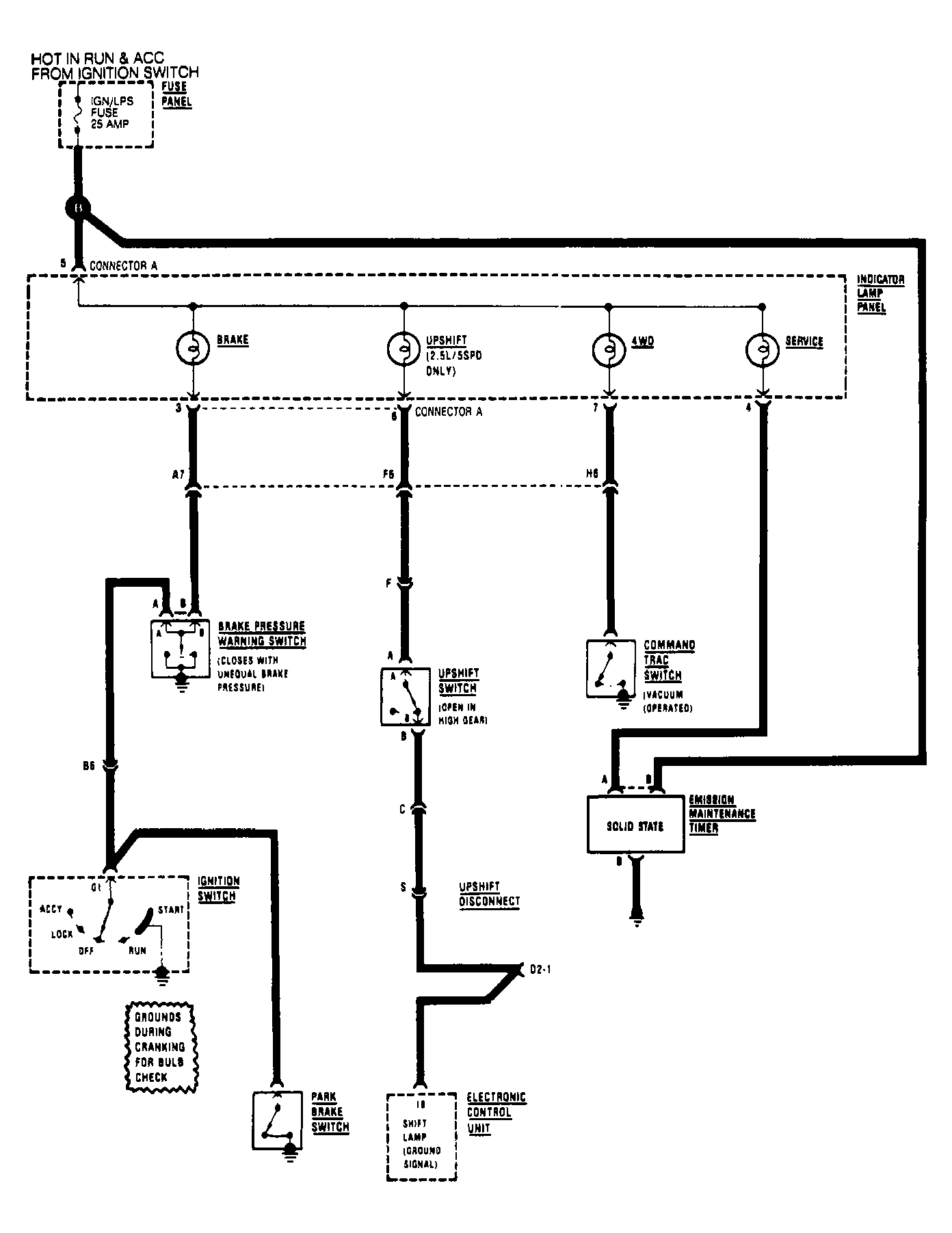

NOTE: For additional testing and wiring schematics of Jeep switches and instrument panel components, See Figure through Figure .
