Instrument Cluster: Wrangler

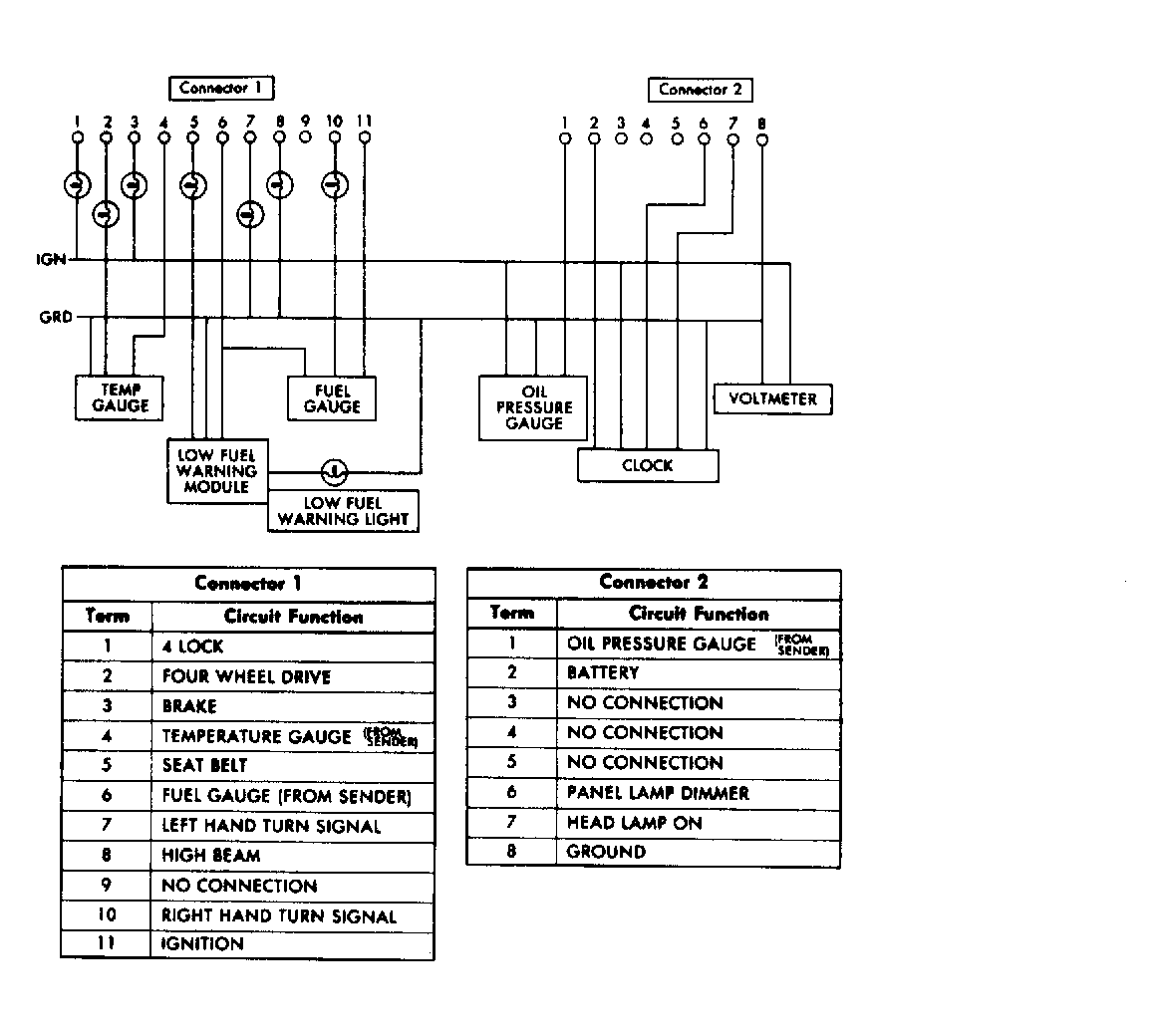

Remove 6 bezel screws retaining gauge cluster to gauge housing. Remove 6 gauge housing screws. See Figure. Disconnect electrical connector from cluster. See Fig 2. To install, reverse removal procedure.

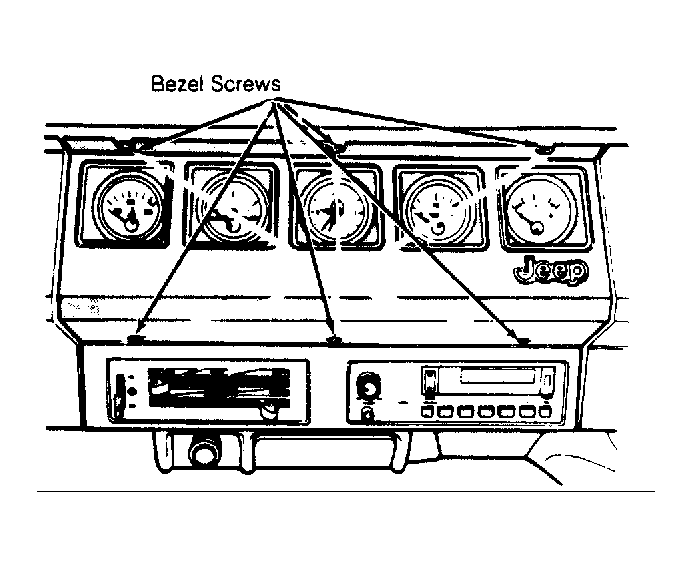

Fig 1: Wrangler Gauge Cluster Removal

Courtesy of CHRYSLER MOTORS.

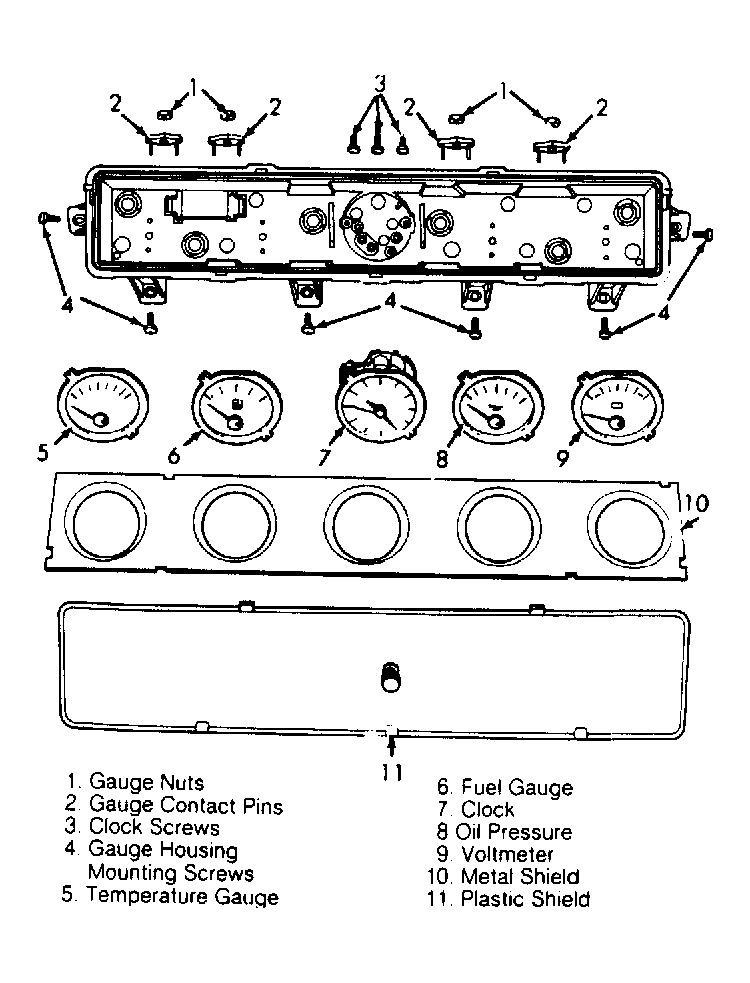

Fig 2: Wrangler Gauge Cluster (Exploded View)

Courtesy of CHRYSLER MOTORS.
