Drum Brake Shoes - Except Grand WAGONEER: Removal

1. Raise vehicle and support with safety stands. Remove wheel assembly and drum. Remove "U" clip and washer from parking brake lever pivot pin. Place Wheel Cylinder Clamp (J-8002) over wheel cylinder.
2. Remove primary and secondary return springs, spring retainers, hold-down springs and retaining pins. Remove adjuster lever, adjuster screw and spring from brake shoes. Remove brake shoes. See Fig 1.

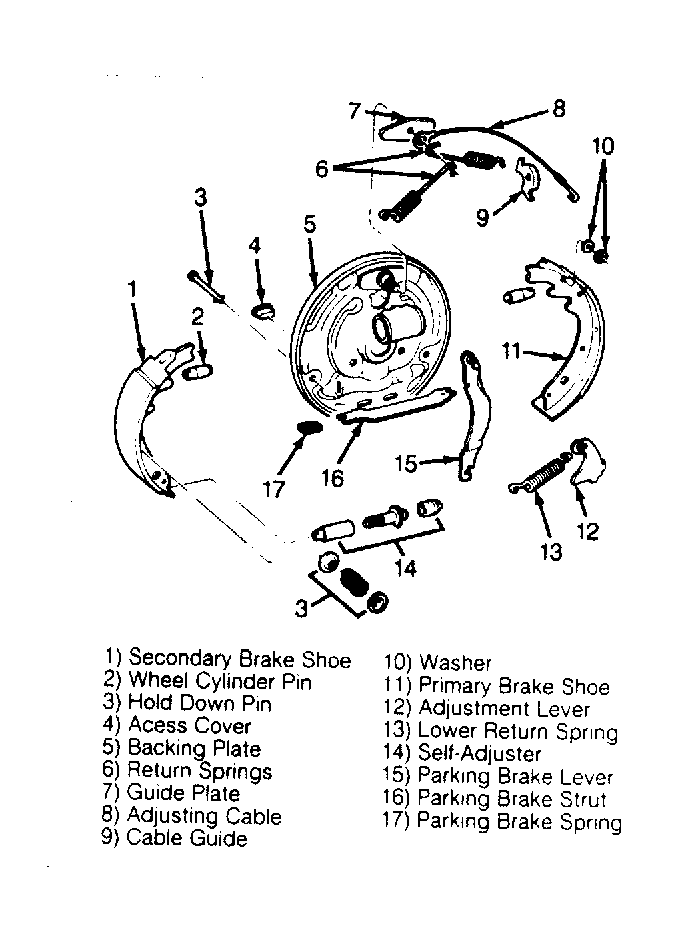

Fig 1: Exploded View of Drum Brake (W/Cable Operated Adjuster)

Courtesy of AMERICAN MOTORS/JEEP CORP.
