Grand Wagoneer & Pickup

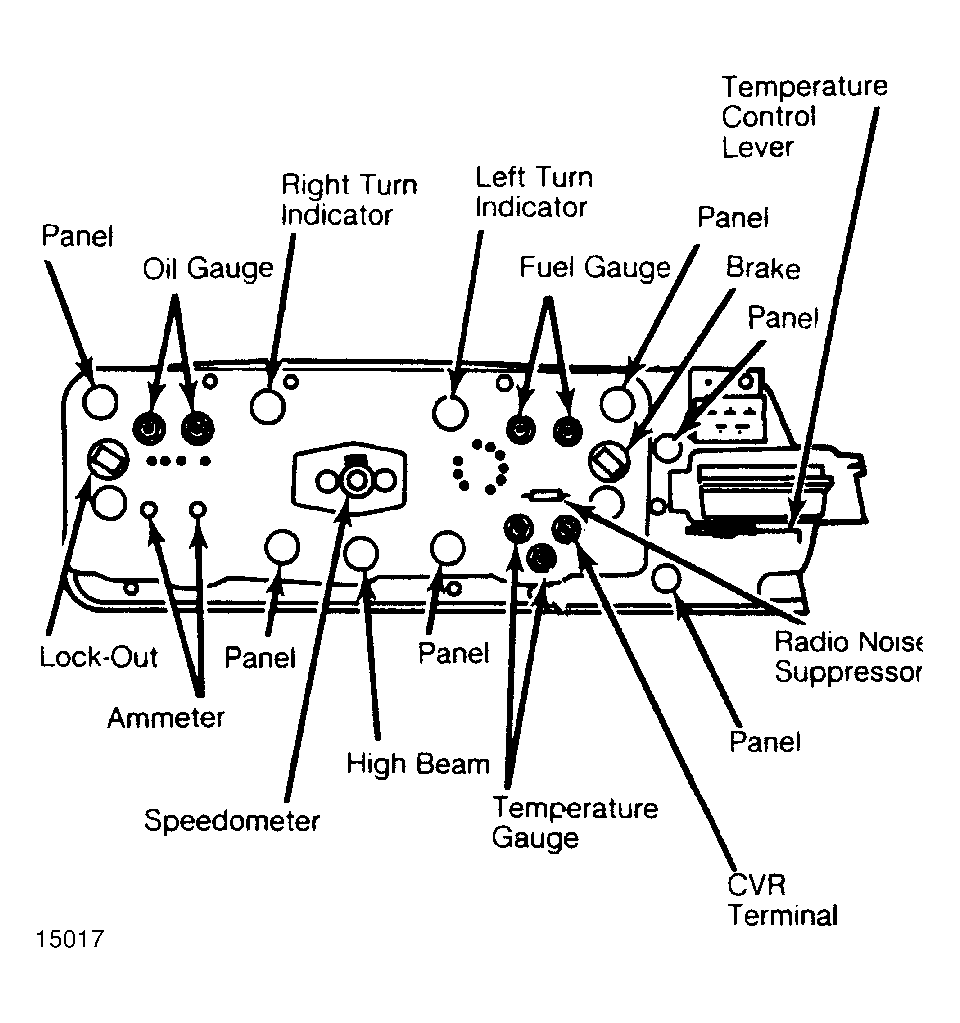

- Remove instrument cluster, radio noise suppressor, and all lamps from cluster. Remove circuit board and gauge assembly. Remove retaining nuts from ammeter and oil pressure gauge. Lift ammeter, oil pressure gauge and plate out of cluster as an assembly.
- Remove retaining nuts from fuel and temperature gauges. Remove large ground screw from circuit board above speedometer. Remove speedometer, fuel gauge and temperature gauge as an assembly. To install, reverse removal procedure, ensure that ammeter nuts are tight.
