Overrunning Clutch

With transmission case in upright position, insert clutch hub inside cam. Install overrunning clutch rollers and springs. See Fig 1 .

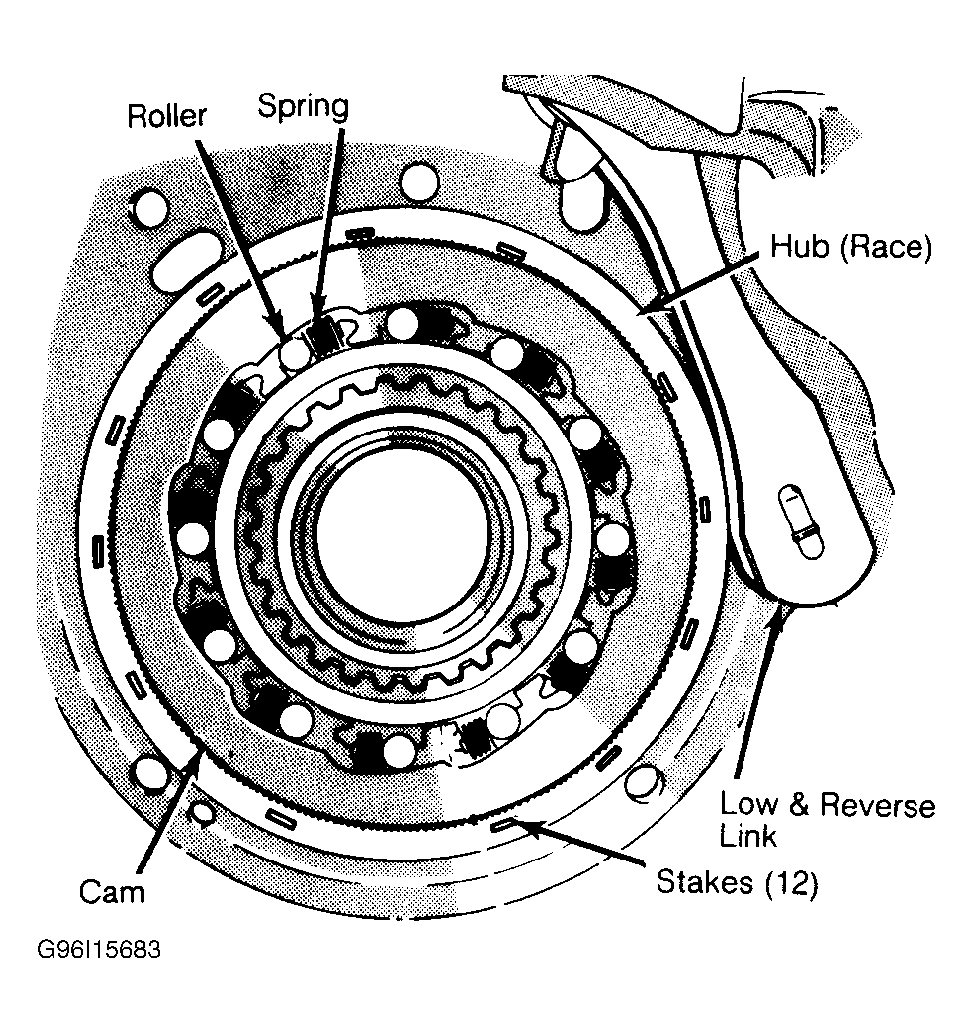

Fig 1: Installed View of Overrunning Clutch
G96I15683Courtesy of CHRYSLER MOTORS
