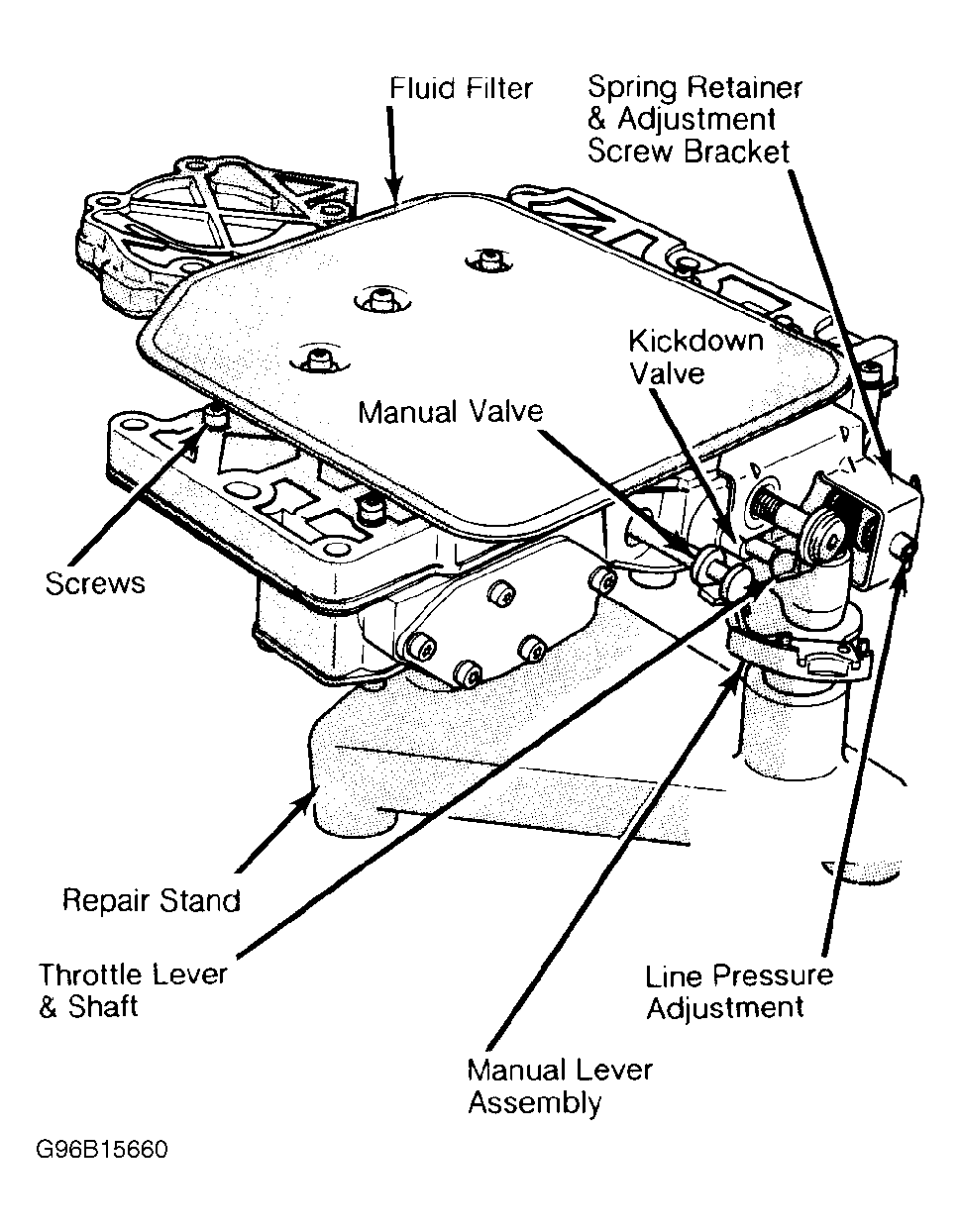

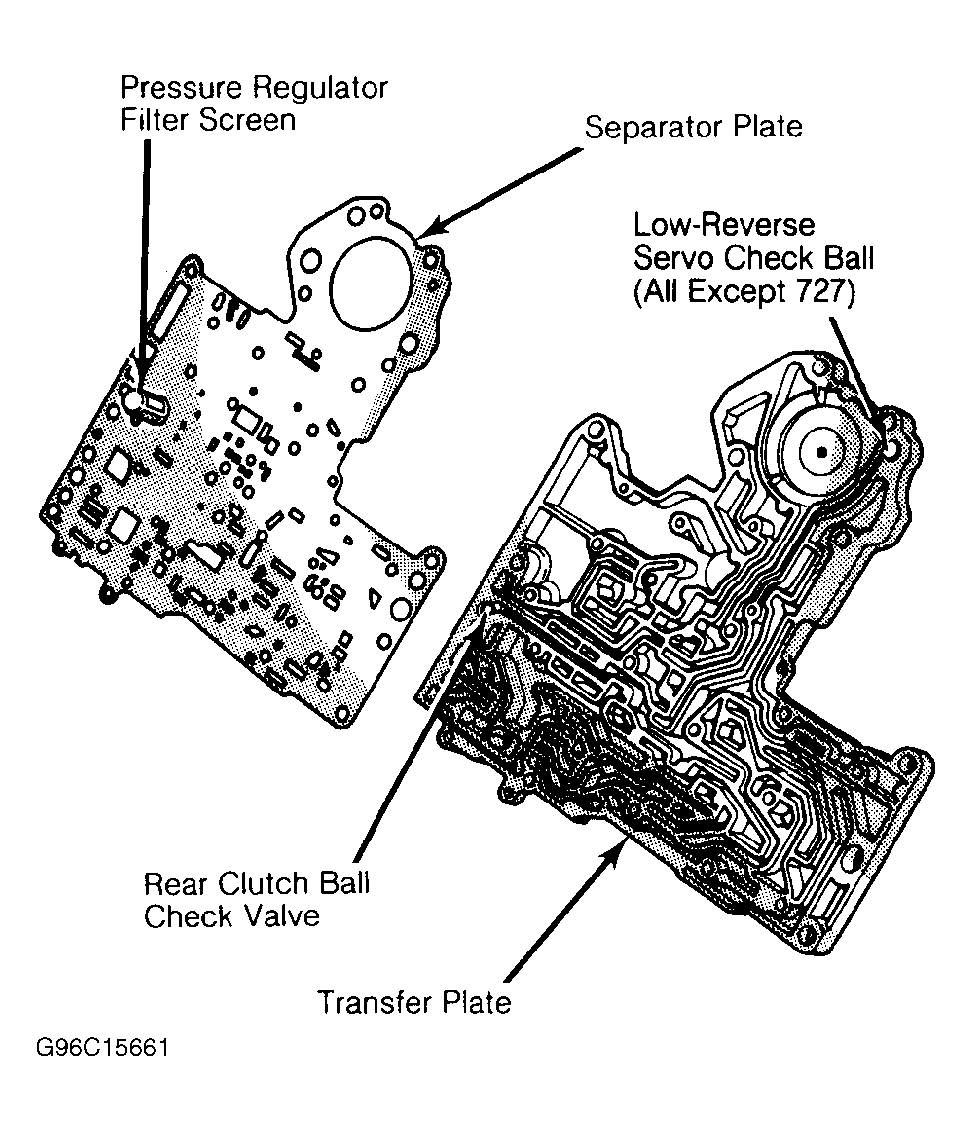

Input Shaft End Play
- Measuring end play before disassembly will usually indicate whether change in thrust washer is required to properly adjust end play during reassembly (except when major parts are replaced).

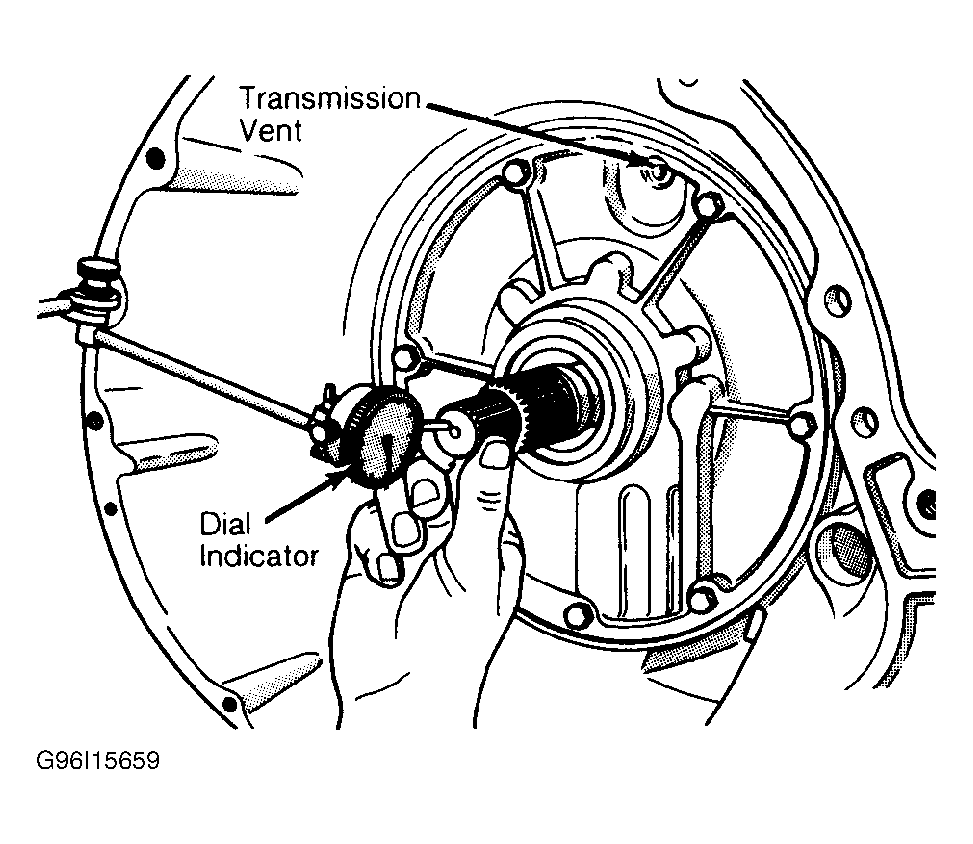

- Attach dial indicator to transmission bellhousing with plunger seated against end of input shaft. Move input shaft in-and-out to obtain reading. Record reading for reassembly reference.
NOTE:
Thrust washer is located between reaction shaft support and front clutch retainer on all 727 transmissions; between input and output shafts on all other models.
TRANSMISSION END PLAY SPECIFICATIONS
| Application | End Play: In. (mm) | |
|---|---|---|
| Model 727 | .035-.084 (.89-2.13) | |
| Model 999 | ||
| American Motors/Jeep | .016-.059 (.41-1.50) | |
| Chrysler Motors | .022-.091 (.56-2.31) | |
| All Other Models | .022-.091 (.56-2.31) | |
NOTE:
Measure end play before disassembly.
