Front Clutch

Direct air pressure into front clutch apply passage. Operation of clutch is indicated by dull thud which may be heard or felt. Hold air pressure for few seconds to check system for excessive air leaks.

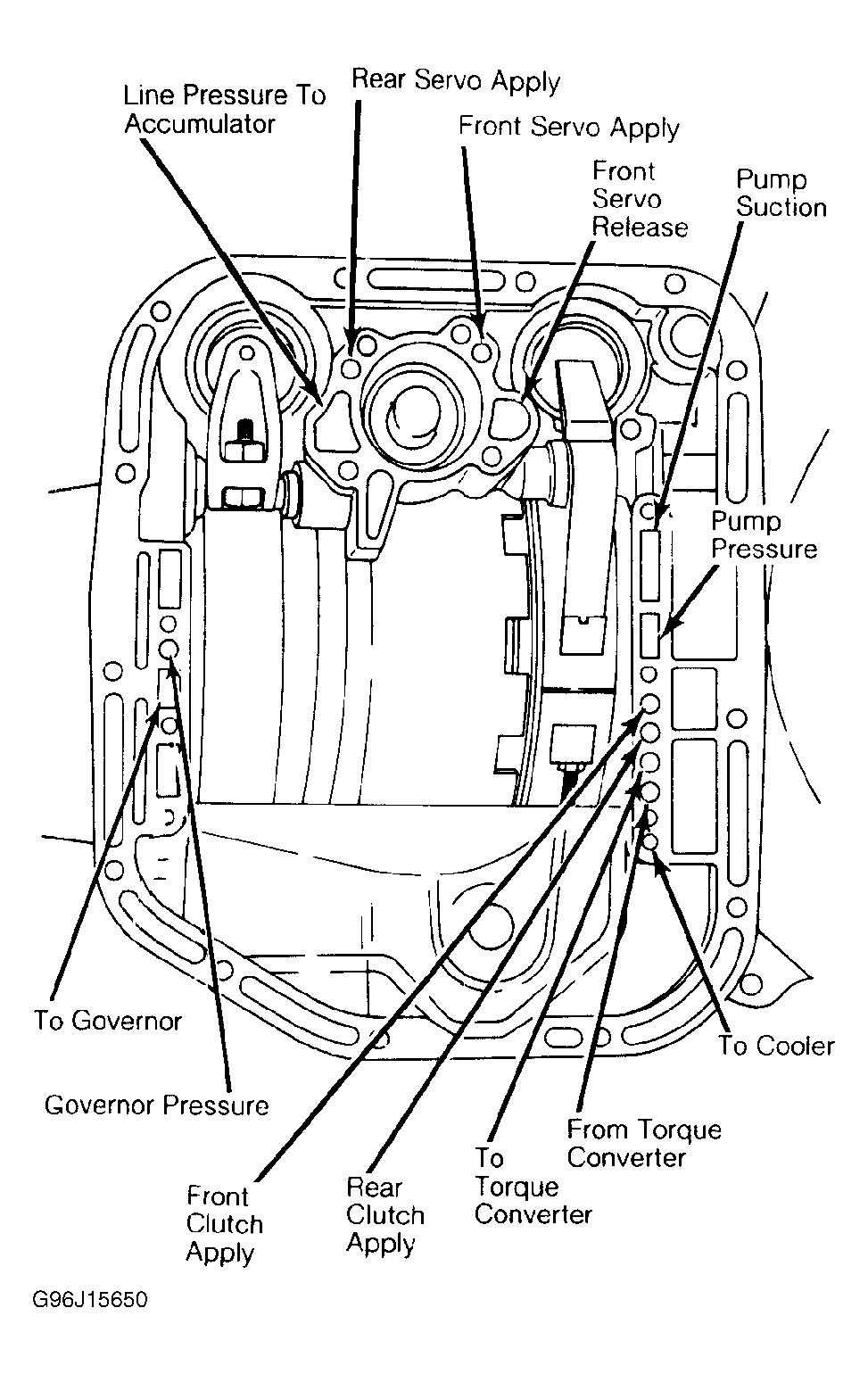

Fig 1: Air Pressure Test Points In Bottom Of Transmission Case
G96J15650Courtesy of CHRYSLER MOTORS
