Governor & Parking Gear: Removal
NOTE:
To remove governor and parking gear from 4WD models, transfer case must be removed.

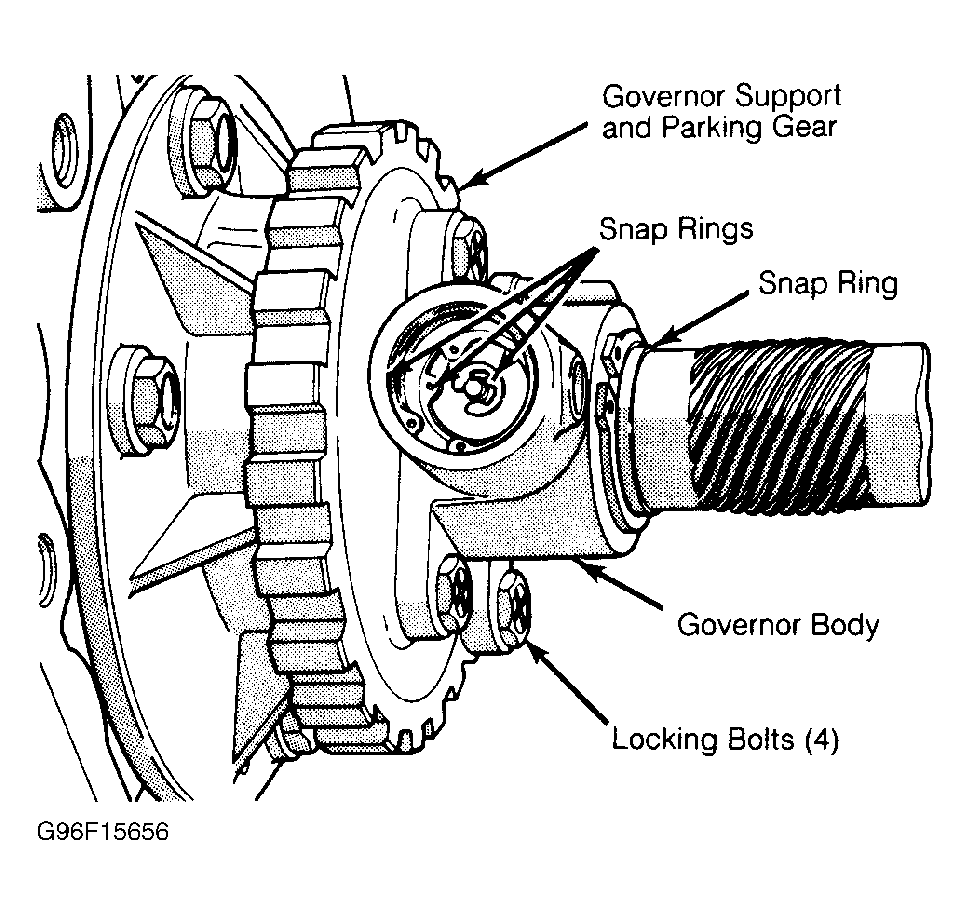

- Remove adapter or extension housing and output shaft bearing. Pry snap ring from small side of governor valve shaft. Slide valve and shaft assembly out of governor body. Remove large snap ring from weight end of governor body. Lift out governor weight assembly.
- Remove snap ring from inside governor weight. Remove inner weight and spring from outer weight. Remove snap ring from behind governor body. Slide body and support assembly off output shaft. Remove bolts. Separate governor body from support and parking gear.
