Governor & Parking Gear: Installation
- Assemble governor body to support. Tighten bolts finger tight, making sure oil passage in governor body aligns with passage in support. Position support and governor assembly on output shaft. Align assembly so valve shaft hole in body mates with hole in output shaft.

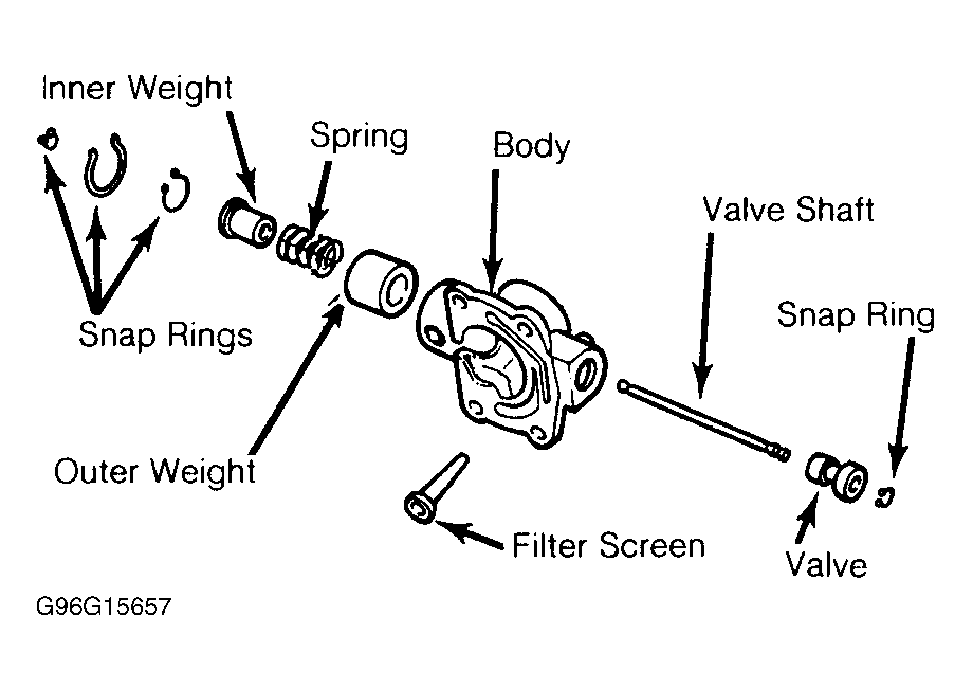

- Slide assembly into place. Install snap ring behind governor body. Tighten body-to-support bolts. Assemble governor weights and spring. Secure with snap ring inside large governor weight.
- Place assembly in governor body. Install snap ring. Place governor valve on valve shaft. Insert assembly into body and through governor weights. Install valve shaft retaining snap ring.
- Inspect valve and weight assembly for free movement. Install output shaft bearing and extension housing or adapter housing.
Courtesy of CHRYSLER MOTORS
