Shuttle Valve & Governor Plugs

  1. Turn valve body over. Remove shuttle valve cover plate. Remove governor plug end plate. Slide out shuttle valve throttle plug and spring, 1-2 shift valve governor plug and 2-3 shift valve governor plug. See Figure .
  2. Remove shuttle valve "E" Clip. Slide shuttle valve from bore. Remove secondary spring and guides. Remove "E" clip and park control rod from lever.

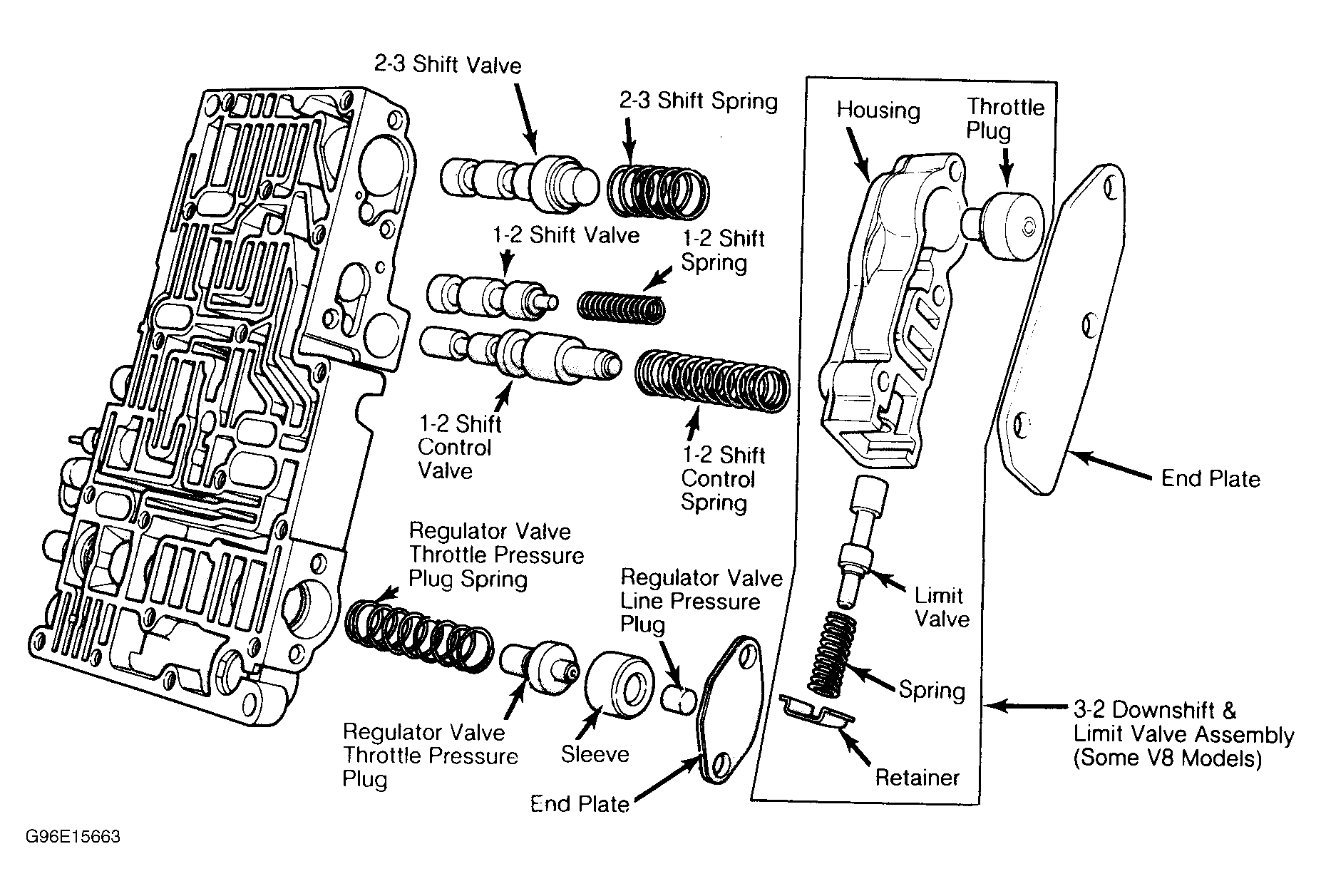

Fig 1: Exploded View of Shift Valves & Pressure Regulator Valve Plugs
G96E15663Courtesy of CHRYSLER MOTORS
