Input Shaft Bushing Replacement (727)

Clamp input shaft in soft-jawed vise, taking care not to clamp seal ring lands or journals. Thread bushing remover into bushing. Remove bushing. Clean input shaft. Using driver, install new bushing.

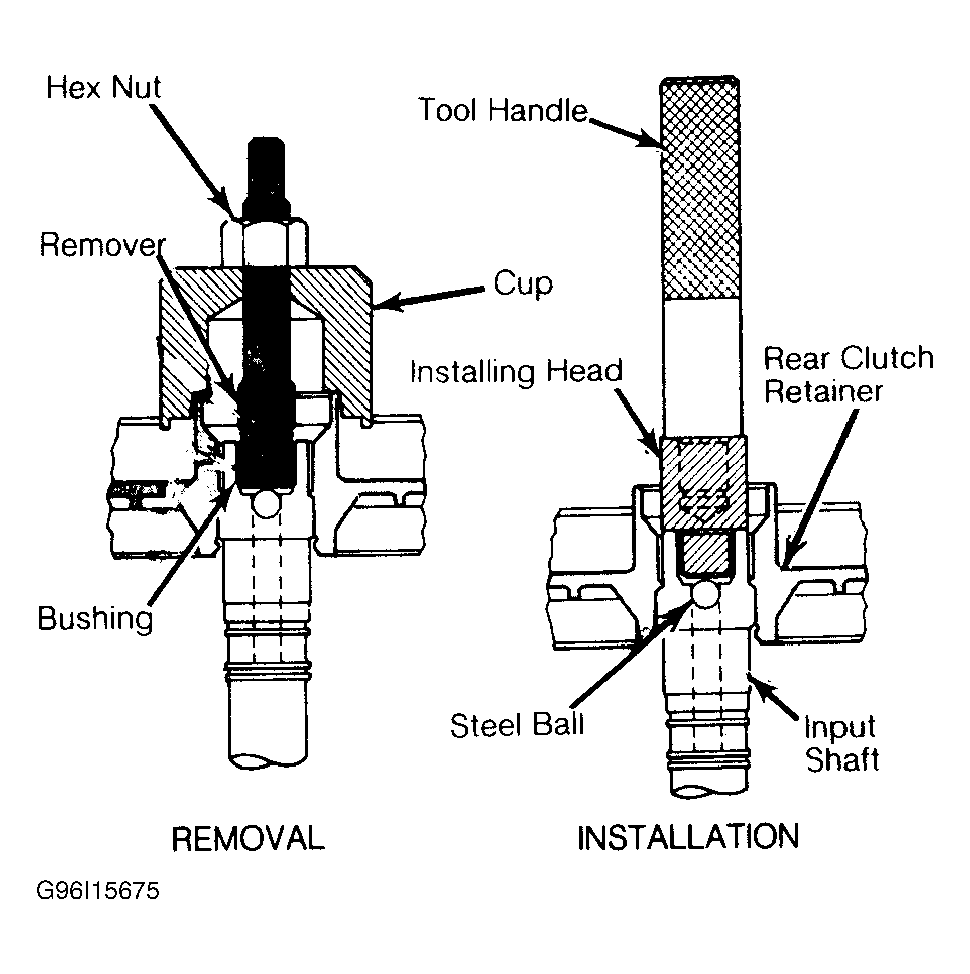

Fig 1: Replacing Input Shaft Bushing
G96I15675Courtesy of CHRYSLER MOTORS
