Reaction Shaft Bushing Replacement

Thread bushing remover into bushing. Remove bushing. Support reaction shaft upright on smooth clean surface. Using bushing Installer, drive bushing (chamfered side up) into reaction shaft. DO NOT clamp any part of reaction shaft or support in vise.

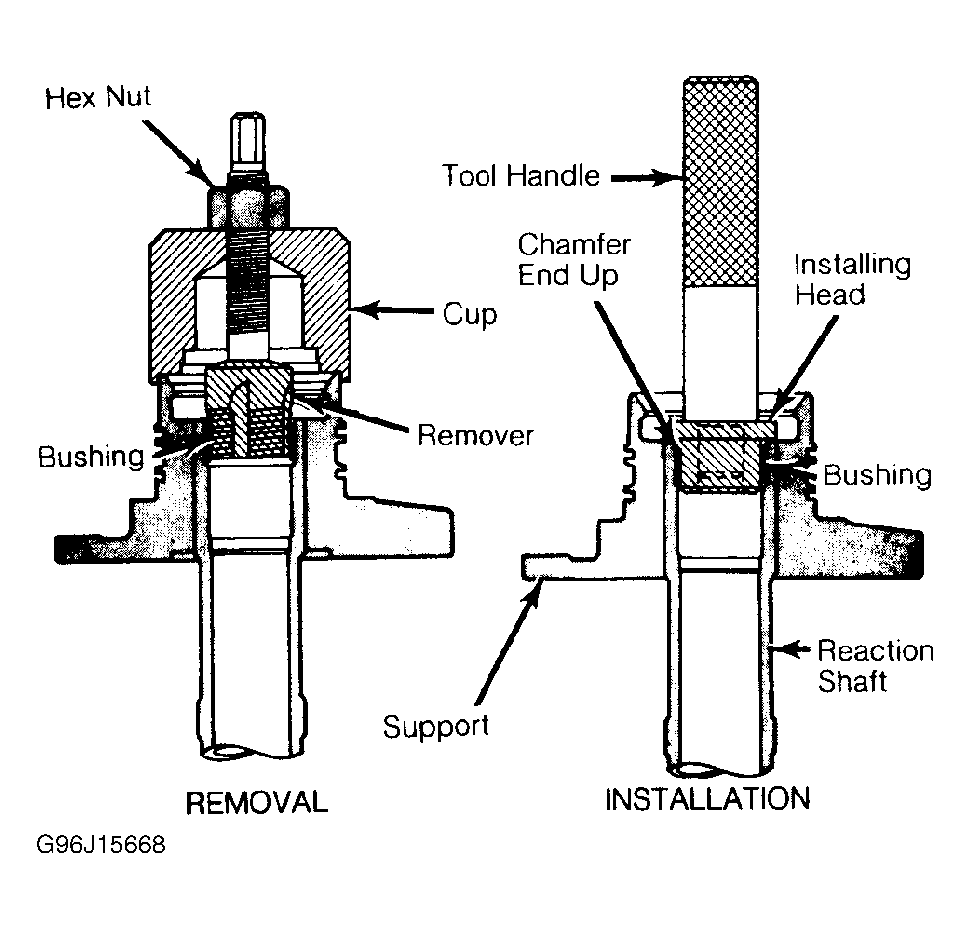

Fig 1: Replacing Reaction Shaft Bushing
G96J15668Courtesy of CHRYSLER MOTORS
