Oil Pump/Reaction Shaft Support: Disassembly

Remove reaction shaft rear support bolts. Lift support off pump. Remove seal ring from pump body flange. Using drift, remove seal. Using chalk, mark top of pump rotors for reassembly reference.

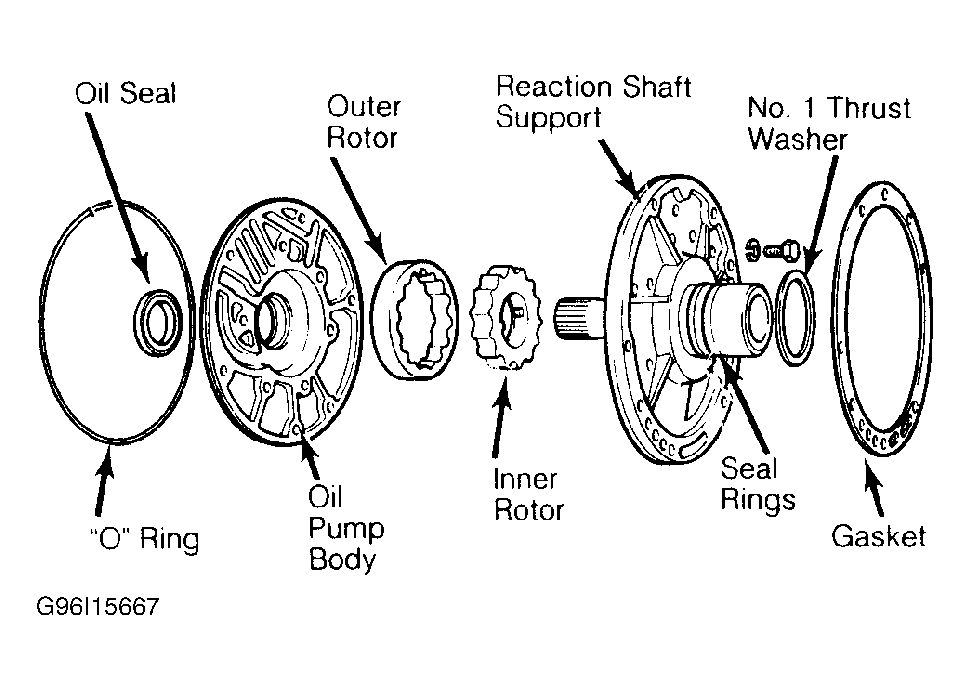

Fig 1: Oil Pump & Reaction Shaft (All Except 727 - 727 similar)
G96I15667Courtesy of CHRYSLER MOTORS
