KICKDOWN Servo & Band (Front): Disassembly

Remove small snap ring from servo piston. Remove washer, spring and piston rod from servo piston.

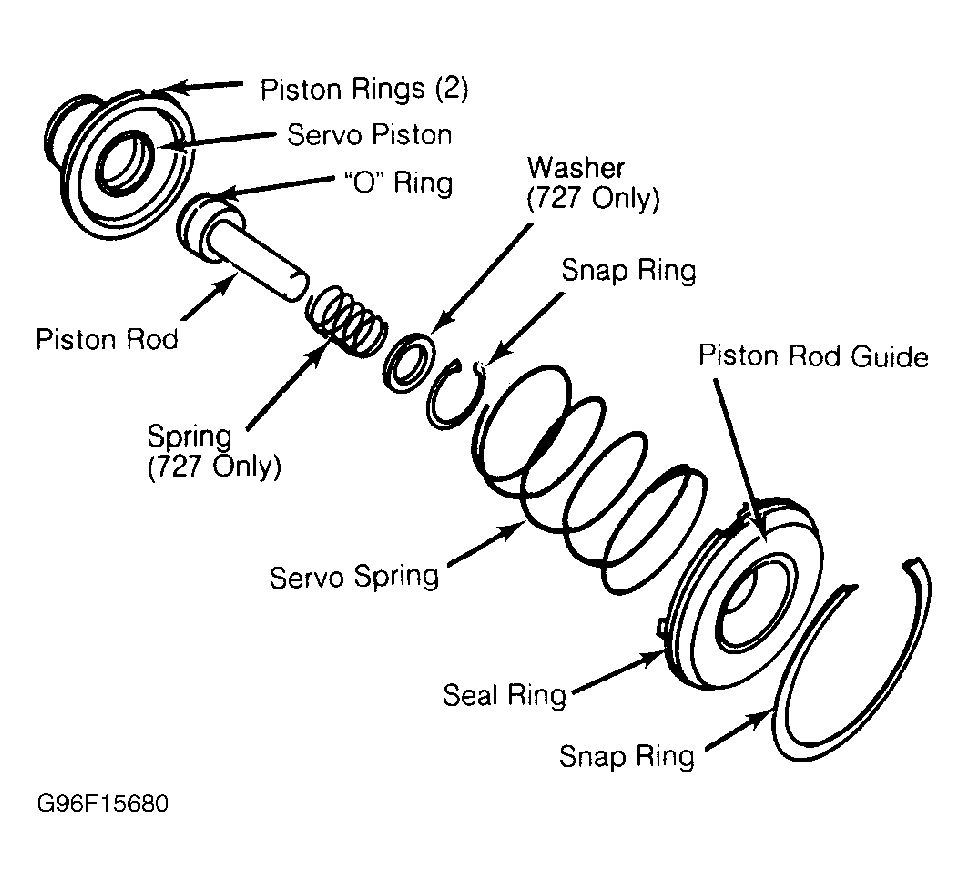

Fig 1: Exploded View of Kickdown Servo (Controlled Load Type)
G96F15680Courtesy of CHRYSLER MOTORS
