Rear Wheel Drive Models
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1983 Plymouth Gran Fury, 1983 Dodge Mirada, 1983 Dodge Diplomat, 1983 Chrysler Imperial, and 1983 Chrysler Fifth Avenue. However, it is still accessible from the selected car via links, so may be relevant.

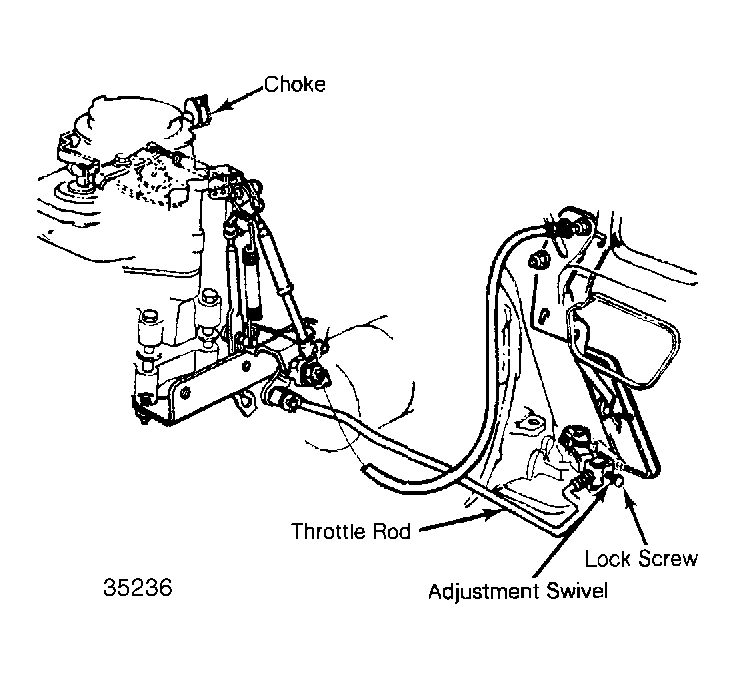

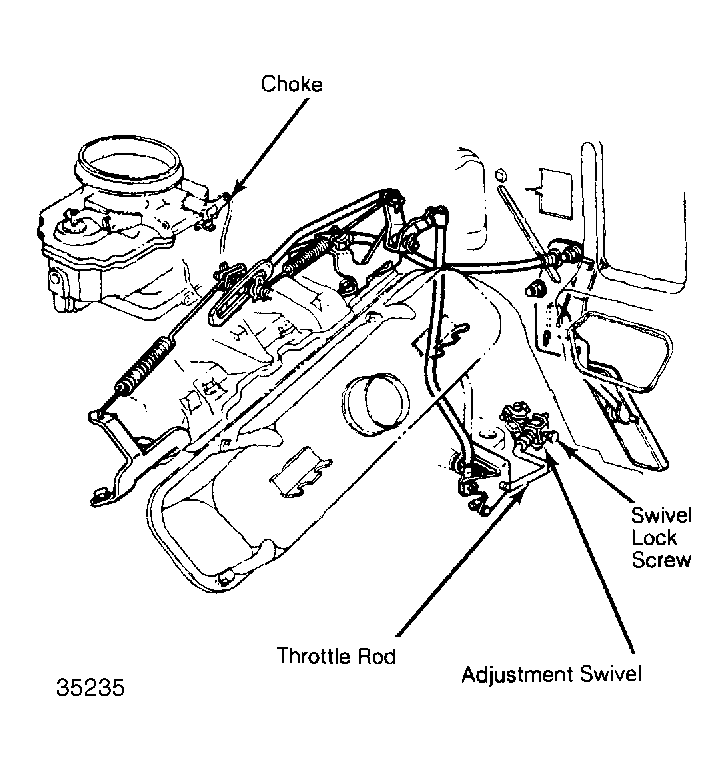

- With engine at normal operating temperature and carburetor off fast idle cam, check and adjust idle speed as needed. Turn off engine and disconnect choke at carburetor or block choke valve in full open position. Open throttle slightly to release fast idle cam and return throttle to curb idle position.
- Raise vehicle on hoist to make adjustment at transmission throttle lever. Loosen adjustment swivel lock screw.NOTE: Swivel must be free to slide along flat end of throttle rod so that preload spring action is not restricted.
- Hold transmission lever firmly forward against its internal stop and tighten swivel lock screw. Adjustment is complete. Linkage backlash is automatically removed by the preload spring.
- Lower vehicle and reconnect choke. To check linkage freedom of operation, move throttle rod rearward, then release slowly, making sure it returns to full forward position.
