Floor Shift (RWD Models)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1983 Plymouth Gran Fury, 1983 Dodge Mirada, 1983 Dodge Diplomat, 1983 Chrysler Imperial, and 1983 Chrysler Fifth Avenue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen adjustable rod swivel lock screw, place selector in "PARK", and move shift lever on transmission all the way to rear (park position).
  2. Adjust swivel so no load is placed on linkage in either direction, then tighten swivel lock screw. Check adjustment so shift effort is free, detents are solid, and all gate stops are positive.
  3. Detent position should be close enough to gate stops in "NEUTRAL" and "DRIVE" so shift selector lever will not remain out of detent position when placed against gate and released. Starter should operate only in "NEUTRAL" or "PARK" positions.

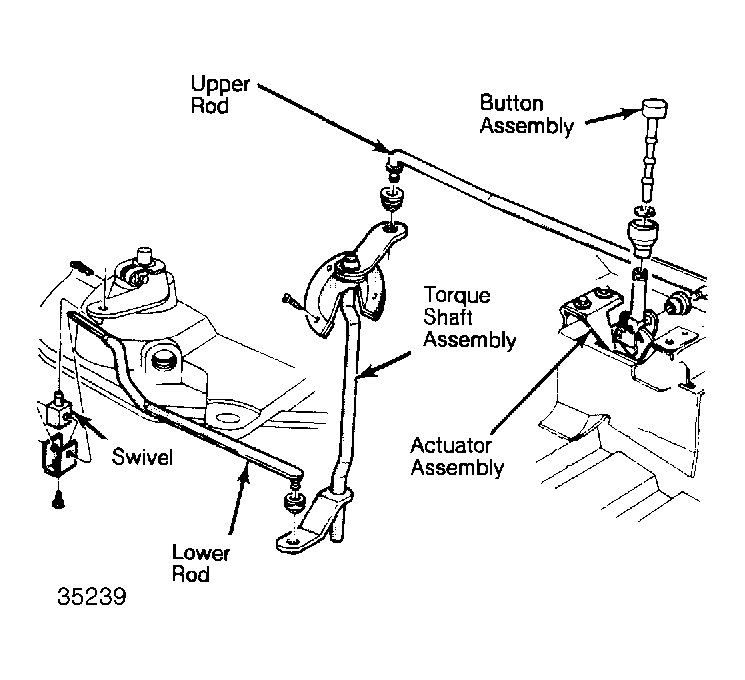

    Fig 1: Floor Shift Linkage Adjustment on RWD Models
    G35239
