Rear Wheel Drive Models

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1983 Plymouth Gran Fury, 1983 Dodge Mirada, 1983 Dodge Diplomat, 1983 Chrysler Imperial, and 1983 Chrysler Fifth Avenue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain transmission and remove oil pan. On passenger cars with A-904 transmission and 6-cylinder engine remove band adjusting screw lock nut and tighten Allen screw at servo end of lever to 41 INCH lbs. (4.6 N.m.).
  2. On all other models, loosen band adjusting screw lock nut approximately 5 turns and make sure screw turns freely in lever. Using special wrench (C3380-A), tighten adjusting screw to 72 INCH lbs. (8.1 N.m.).
  3. On all models, back off adjusting screw specified number of turns as given in Low-Reverse Band Adjustment table. Hold adjusting screw in position and tighten lock nut to 30 ft. lbs. (41 N.m.). Clean oil pan. Install new gasket with pan and fill transmission with fluid.

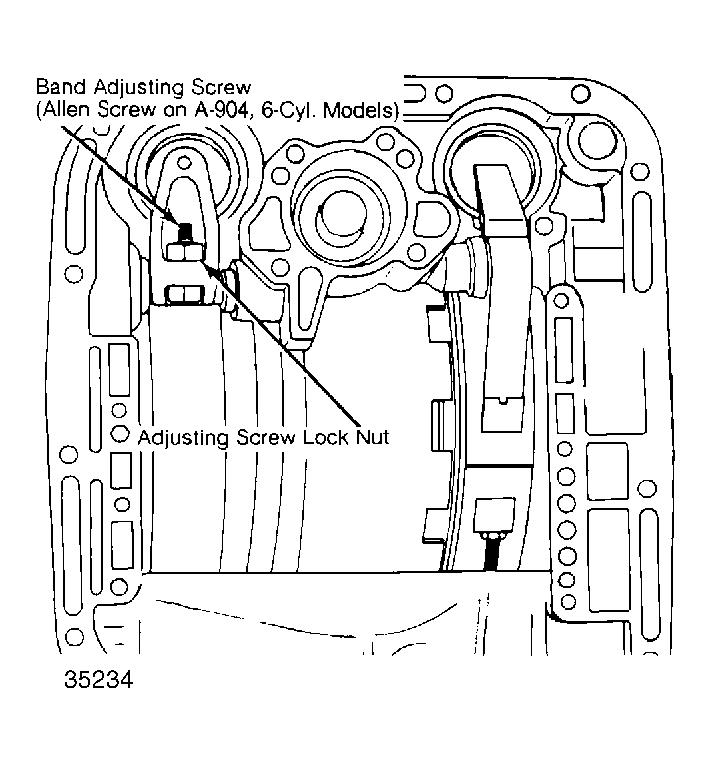

    Fig 1: Low-Reverse Band Adjustment (Rear) Screw Location
    G35234
LOW-REVERSE BAND ADJUSTMENT

Application Back Off Screw
A-904 & A-904LA 225" (3.7L) 7 Turns
A-904 & A-904LA 318" (5.2L) 4 Turns
A-727 (All) 2 Turns
