LOADFLITE 727 & 999

WARNING: This page is about a different car, the 1990 Jeep Wrangler, 1990 Jeep Wagoneer, 1990 Jeep Grand Wagoneer, 1990 Jeep Comanche, and 1990 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support vehicle. Drain transmission fluid and remove oil pan. Locate low-reverse band adjusting screw on rear servo lever. See Fig 1. Loosen adjusting screw lock nut and back off about 5-6 turns.
  2. Tighten adjusting screw to 72 INCH lbs. (8 N.m) then back off adjusting screw 4 turns on 999 transmission and 2 turns on 727. Hold adjusting screw and tighten lock nut to 25 ft. lbs. (34 N.m). Install oil pan and fill transmission with fluid.

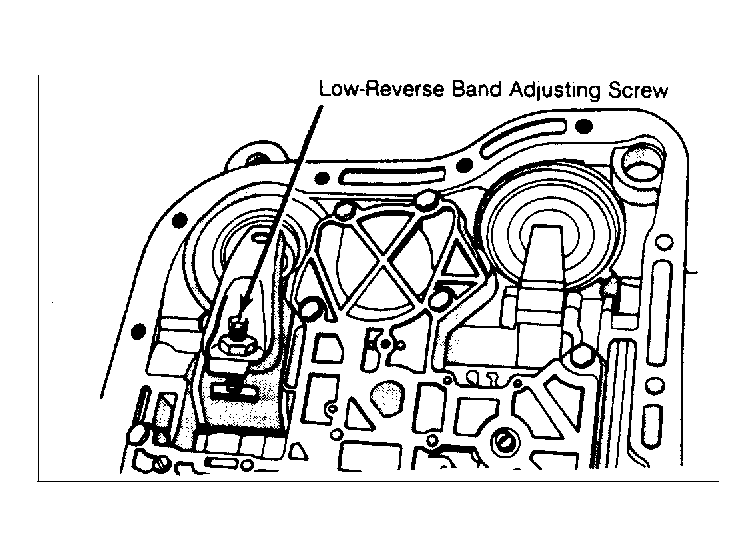

    Fig 1: Adjusting Low-Reverse (Rear) Band
    G121179Courtesy of CHRYSLER LLC
