LOADFLITE 727 & 999

WARNING: This page is about a different car, the 1990 Jeep Wrangler, 1990 Jeep Wagoneer, 1990 Jeep Grand Wagoneer, 1990 Jeep Comanche, and 1990 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Locate kickdown band adjusting screw on left side of case (near throttle lever shaft). See Fig 1. Loosen adjusting screw lock nut and back off approximately 5 turns. Ensure adjusting screw turns freely in case.
  2. Tighten adjusting screw to 72 INCH lbs. (8 N.m). If Adapter Extension (J-24063) is used, tighten adjusting screw to 50 INCH lbs. (5 N.m). Back off adjusting screw 2 1/2 turns. Hold adjusting screw and tighten lock nut to 30 ft. lbs. (41 N.m).

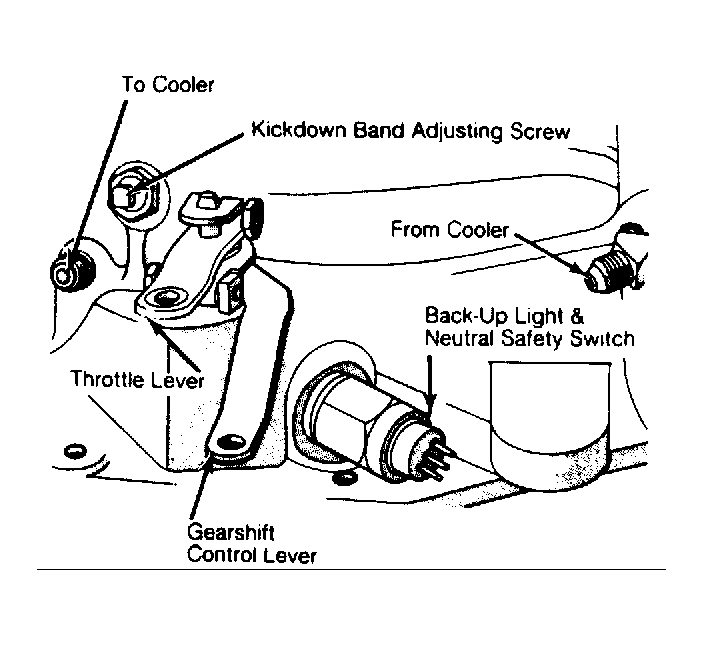

Fig 1: Kickdown Band Adjusting Screw Location
G121178Courtesy of CHRYSLER LLC
