"CJ" & Scrambler Models
- Disconnect battery ground cable. Separate speedometer cable from speedometer head. If equipped with air conditioning, remove screws attaching evaporator to instrument panel and lower evaporator.

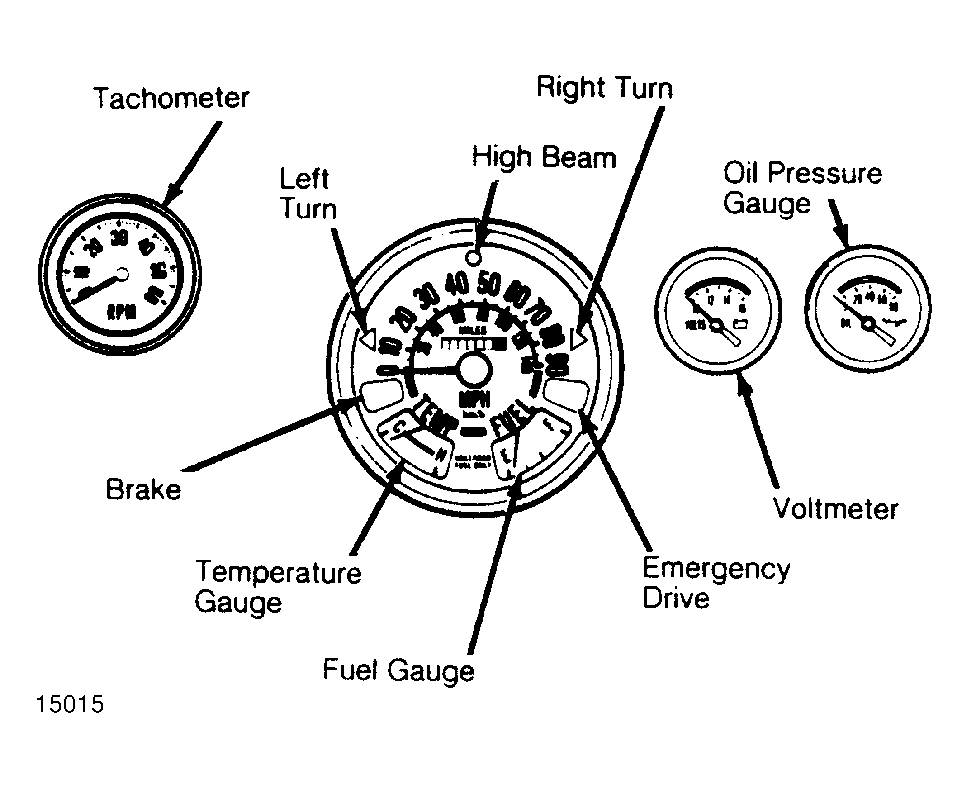

- Remove attaching screws and remove cluster. Note position of all lamps and electrical wires. Remove cluster electrical connectors. To install, reverse removal procedures.
