All Models

Disconnect connector plug from switch. Pull control knob out to second position. From behind instrument panel, depress knob release button and pull knob out of switch. Remove retaining nut and bezel. Remove switch through rear of instrument panel. To install, reverse removal procedures.

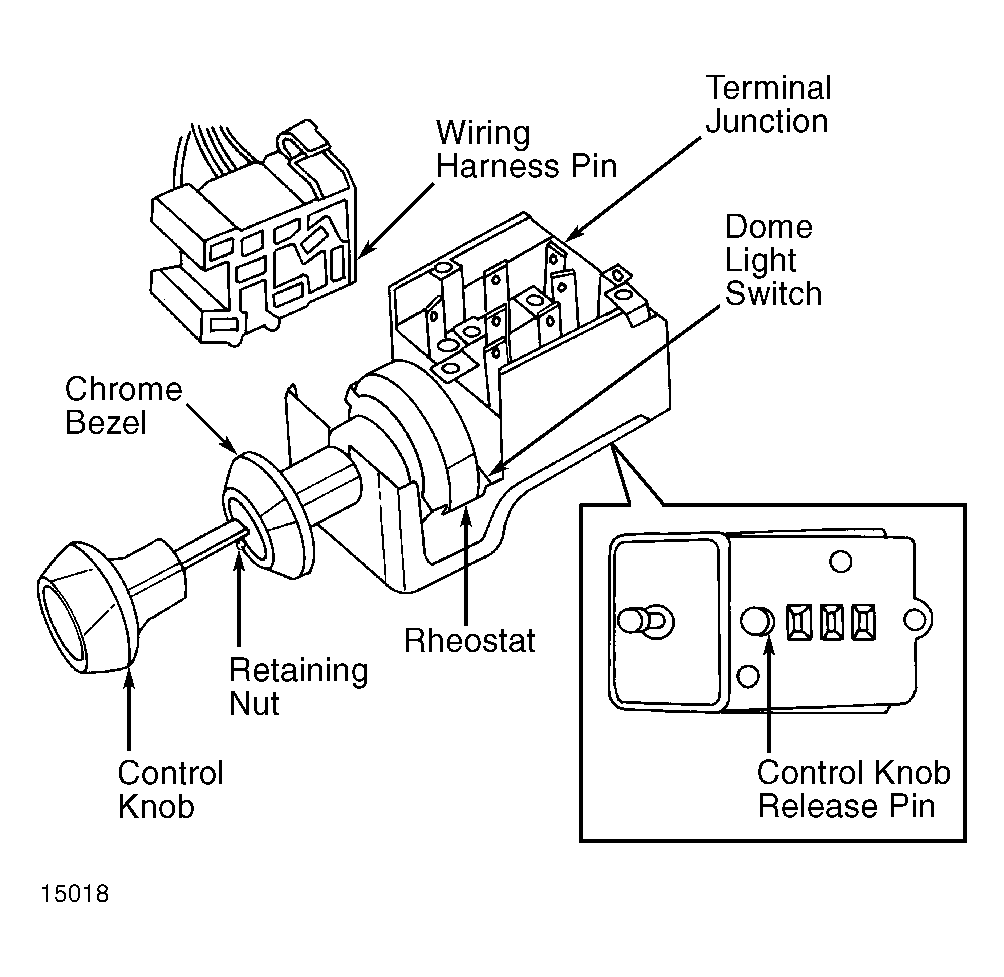

Fig 1: Jeep Headlight Switch & Harness Connector Remove switch through rear of instrument panel.
G15018
