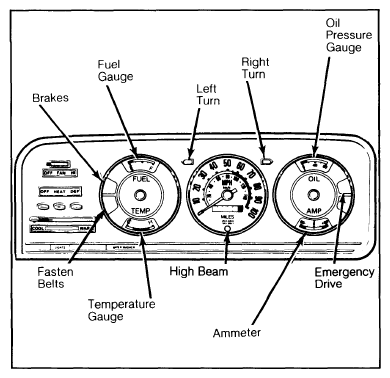

Cherokee, Truck & Wagoneer Models
- Disconnect battery ground cable. Disconnect speedometer cable. Cover steering column. Remove cluster retaining screws. Tilt top of cluster toward interior of vehicle. Mark electrical connectors and hoses and disconnect heater vacuum hoses and electrical connections. Disconnect blend air door control cable.NOTE: Tag hoses to ensure proper connections when installing the cluster.
- Remove instrument cluster assembly. To install, reverse removal procedure.
