"CJ" & Scrambler Models

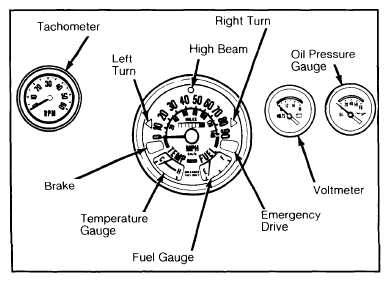

Fig 1: Jeep Instrument Cluster "CJ" and Scrambler models.

Courtesy of CHRYSLER GROUP, LLC

Disconnect battery ground cable. Separate speedometer cable from speedometer head. If equipped with air conditioning, remove screws attaching evaporator to instrument panel and lower evaporator.
Remove attaching screws and remove cluster. Note position of all lamps and electrical wires. Remove cluster electrical connectors. To install, reverse removal procedures.
