Cherokee, Wagoneer & "J" Models

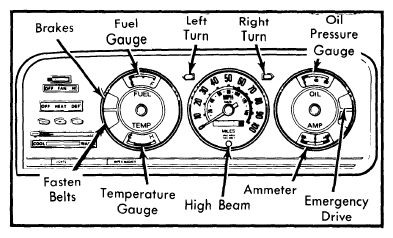

- Disconnect battery and remove six cluster retaining screws. Disconnect speedometer cable. Pull cluster pin terminal plug straight away from cluster. Disconnect four-terminal plug, fan switch connector plug, and vacuum hoses from heater control. Mark ammeter wires and disconnect them.NOTE: Tag hoses to ensure proper connections when installing the cluster.
- Remove two heater control panel lights, and disconnect temperature control wire from lever. Remove instrument cluster assembly. To install, reverse removal procedure.
