Wiring Diagrams

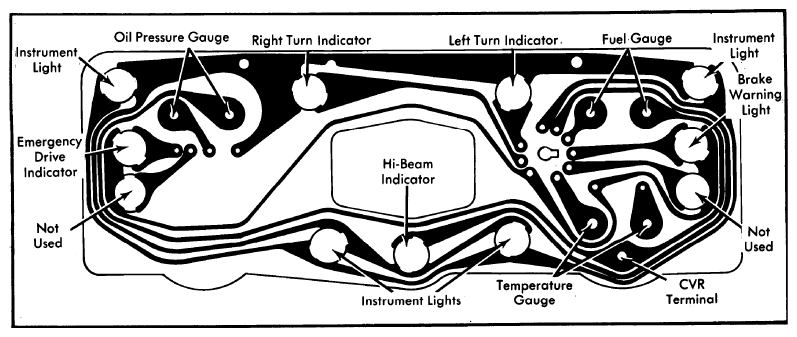

Fig 1: "J" Models, Cherokee and Wagoneer

G09308966

Courtesy of CHRYSLER GROUP, LLC
