Commando, Wagoneer, J-2000 & J-4000 (1971-73)

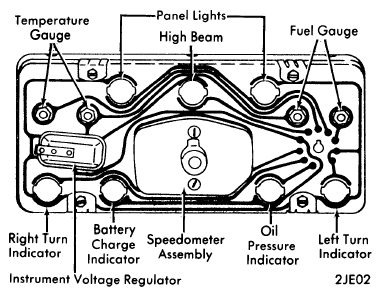

Cluster is retained in panel by four spring clips. To remove, disconnect battery, disconnect speedometer cable, and pull cluster pin terminal plug straight away from cluster. Remove lower spring clip attaching screws and depress upper spring clips toward cluster and disengage barbs, push cluster away from dash to remove. To reinstall, attach the two lower spring clips and insert cluster into panel until all spring clips snap into place.
