CJ & DJ (1965-71)

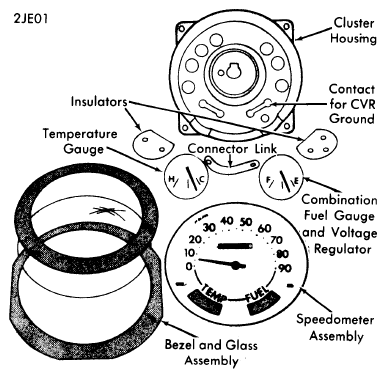

Instrument cluster contains speedometer, fuel and temperature gauges, plus oil pressure and battery charge indicators. Cluster can be removed by detaching four mounting bolts on rear of cluster securing to dash. Cluster can be pulled forward and out after detaching speedometer cable and circuit wiring.
