CJ & DJ, All Models (1974)

Disconnect connector plug from switch, pull control knob out to second position. From behind instrument panel, depress knob release button and pull knob out of switch. Remove retaining nut and bezel and remove switch through rear of instrument panel.

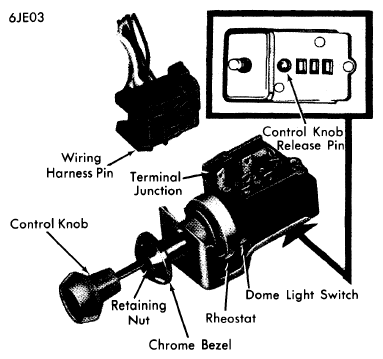

Fig 1: MAIN LIGHT SWITCH, ALL SERIES (TYPICAL)

Courtesy of CHRYSLER GROUP, LLC
