Removal And Installation: Removal
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

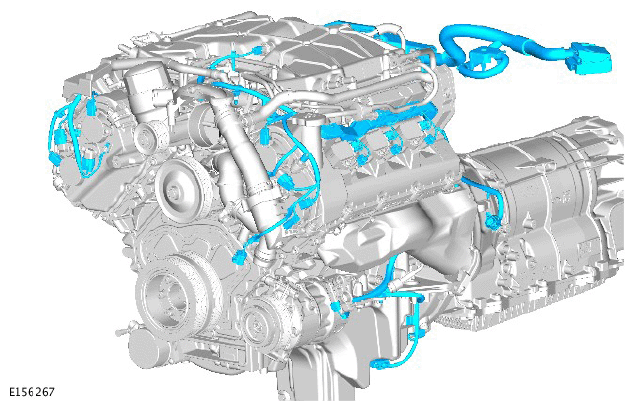

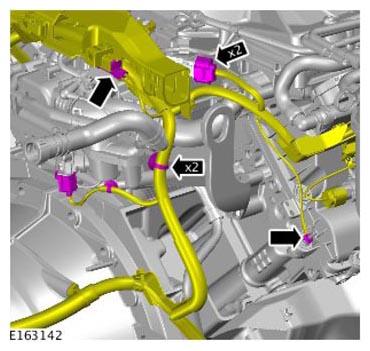

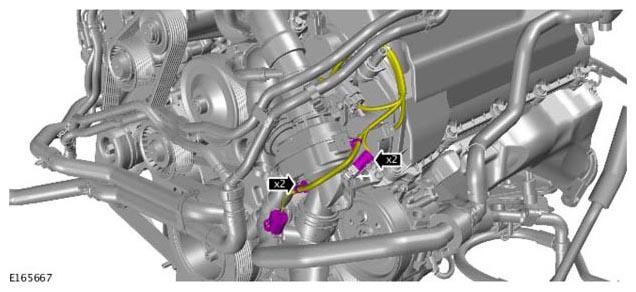

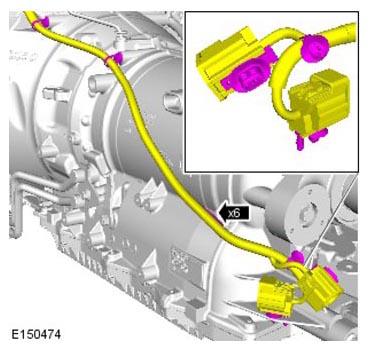

Note of the routing of the wiring harnesses.
NOTE:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Removal steps in this procedure may contain installation details.
- Refer to: Battery Disconnect and Connect .
- Refer to: Secondary Bulkhead Panel LH - V6 S/C 3.0L Petrol .
- Refer to: Left Air Cleaner Outlet Pipe .
- Refer to: Air Cleaner Outlet Pipe RH .
- Refer to: Air Cleaner Outlet Pipe T-Connector .
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
- Refer to: Exhaust System - V6 S/C 3.0L Petrol .
- Refer to: Cooling System Draining and Vacuum Filling (General Procedures).
-

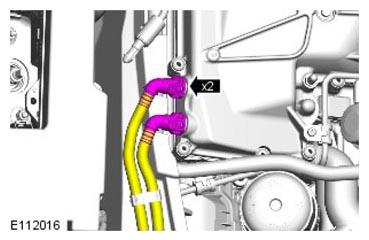

CAUTION: Be prepared to collect escaping fluids.
Torque Specification: 10 Nm
Torque Specification: 10 Nm
Torque Specification: 10 Nm
Torque Specification: 10 Nm
-
NOTE: If fitted.
Torque Specification: 25 Nm
Torque Specification: 10 Nm
