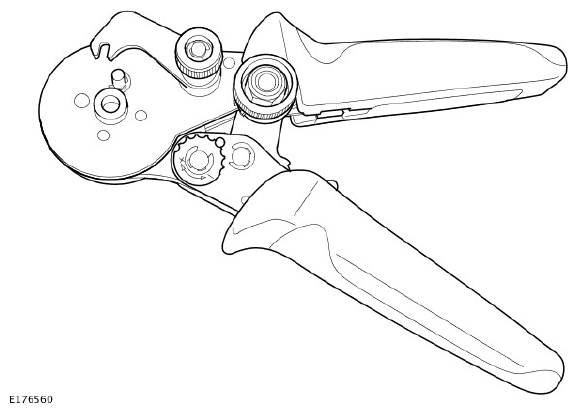

Fiber Optic Conductor Contact Crimping Pliers

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

A small amount of effort is required to operate the fiber optic conductor contact crimping pliers and secure a fiber optic conductor contact to the fiber optic conductor core.

The new fiber optic conductor contact is placed into the cramping mechanism in the head of the pliers and the locking arm is repositioned to hold the conductor contact securely in position. The locking arm must locate on to the retaining pin.

The prepared end of the fiber optic core is then inserted into the new conductor contact.

The fiber optic core and conductor contact must be pushed and held against the spring pressure in the cramping mechanism. The grips of the fiber optic conductor contact crimping pliers are then be closed, cramping the conductor contact to the conductor core.

NOTE:

Only use the approved fiber optic conductor contact crimping pliers to cramp a new conductor contact.
A conductor contact must only be cramped once using the fiber optic conductor contact crimping pliers.

The cramping mechanism inside the head applies the appropriate pressure to the conductor contact at 4 points. This makes a secure contact and does not damage the conductor core.

When the new conductor contact has been cramped to the fiber optic core, make sure the fiber optic core end sits 0.01mm to 0.1mm below the height of the conductor contact end.

NOTE: Make sure the fiber optic conductor lead contact remains clean and protected at all times. Fit a fiber optic conductor contact protective cap.
