Pliers symbols
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

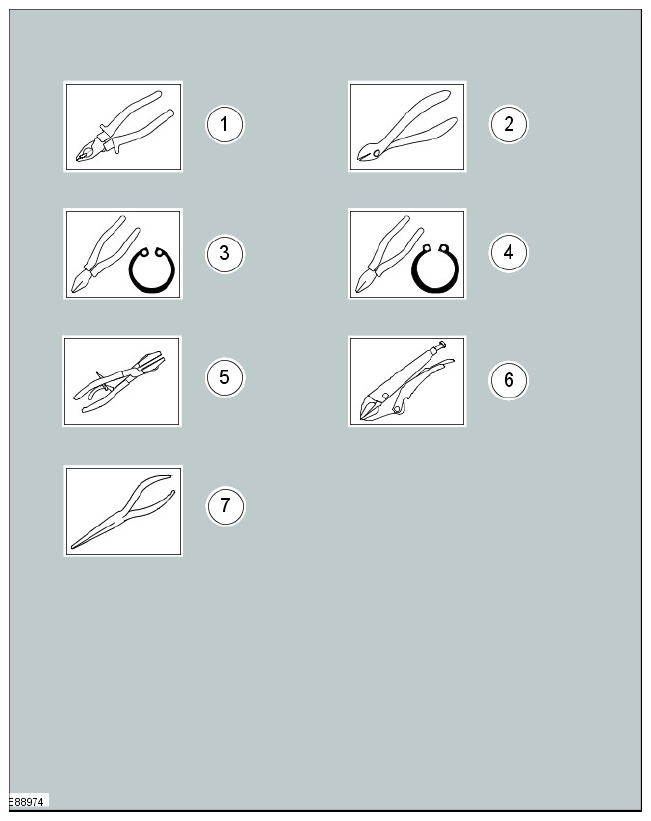

The pliers symbols are used to show which pliers is recommended to carry out a procedure step.
| ITEM |
DESCRIPTION |
| 1 |
Combination pliers |
| 2 |
Side cutter pliers |
| 3 |
Securing ring pliers - inner |
| 4 |
Securing ring pliers - outer |
| 5 |
Hose clamp pliers |
| 6 |
Locking pliers |
| 7 |
Long nose pliers |
