Gearshift lever and selector lever position symbols
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

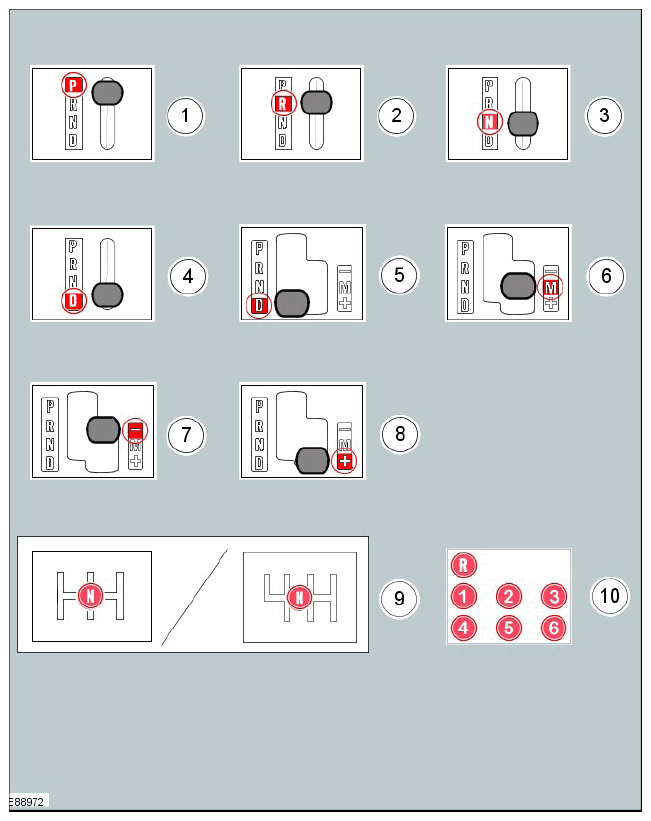

Gearshift lever and selector lever position symbols are used to show the lever position that is required to be selected to carry out a procedure step.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Set the selector lever to the park (P) position |
| 2 | Set the selector lever to the reverse ®) position |
| 3 | Set the selector lever to the neutral (N) position |
| 4 | Set the selector lever to the drive (D) position |
| 5 | Set the selector lever with manual shift pattern to the park (D) position |
| 6 | Set the selector lever with manual shift pattern to the manual (M) position |
| 7 | Set the selector lever with manual shift pattern to the shift down (-) position |
| 8 | Set the selector lever with manual shift pattern to the shift up (+) position |
| 9 | Set the gearshift lever to the neutral (N) position |
| 10 | Further gearshift lever positions that may appear in illustrations |
