Cutting tool symbols
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

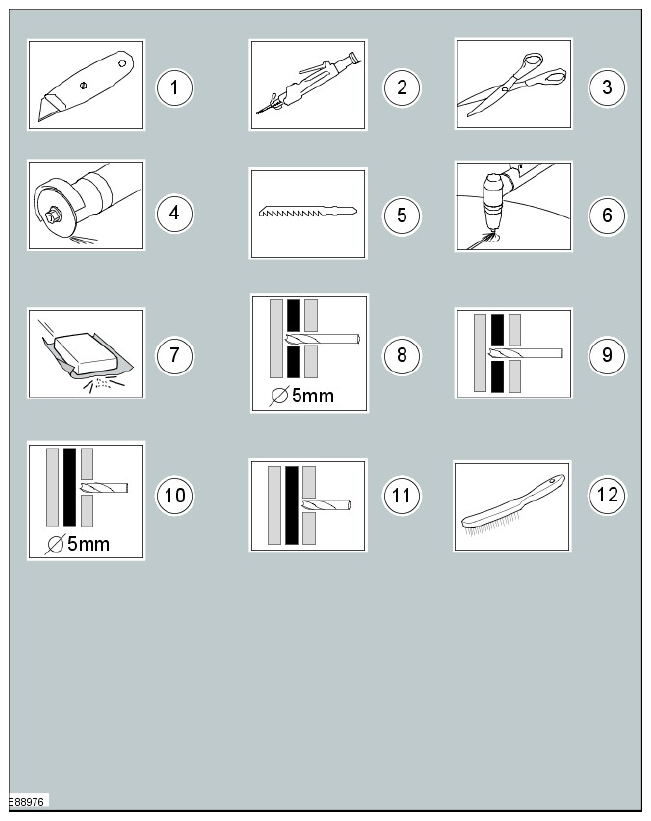

The cutting tool symbols are used to show which type of cutting tool is recommended to carry out a procedure step.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Cutting knife |
| 2 | Air body saw |
| 3 | Scissors |
| 4 | Grinder |
| 5 | Jig saw |
| 6 | Plasma cutter |
| 7 | Sanding Paper |
| 8 | Drill through the shown number of body panel layers with a specified diameter |
| 9 | Drill through the shown number of body panel layers with a suitable diameter |
| 10 | Drill through 1 body panel layer with a specified diameter |
| 11 | Drill through 1 body panel layer with a suitable diameter |
| 12 | Wire brush |
