Brake Pedal Switch

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

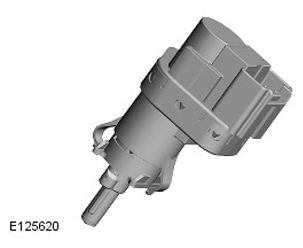

G11284554

The brake pedal switch is a two pole switch mounted in the brake pedal bracket and operated by the brake pedal. The output connections of the two poles are hardwired to the BCM/GWM assembly. The input connection of one pole is a hardwired signal feed from the BCM/GWM assembly. The input connection of the second pole is hardwired to ground. The BCM/GWM assembly compares the signals from the two poles to confirm the status of the brake pedal switch, which it uses to operate the stop lamps.
