General Equipment

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
EQUIPMENT NAME
Transmission jack
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Remove the secondary bulkhead left inner panel.

    Refer to: SECONDARY BULKHEAD LEFT INNER PANEL - PROJECT 8

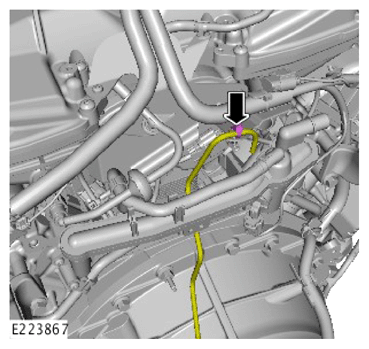

  3. G13946415Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the transmission breather pipe.

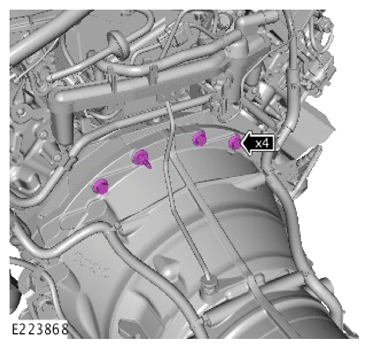

  4. G13946416Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 4 upper transmission bolts.

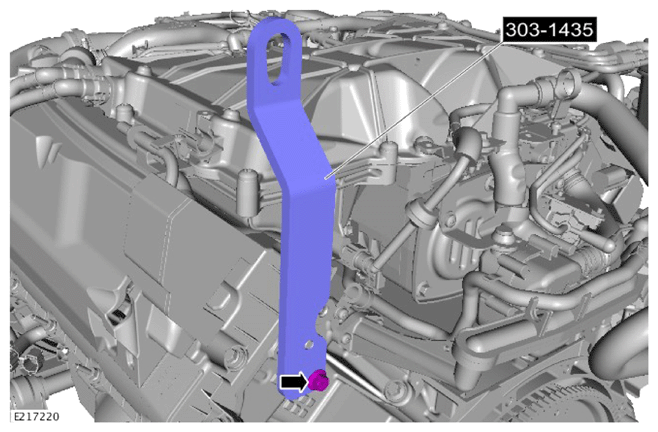

  5. G13885160Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool.

    Special Tool(s): 303-1435

    Torque  : 25Nm

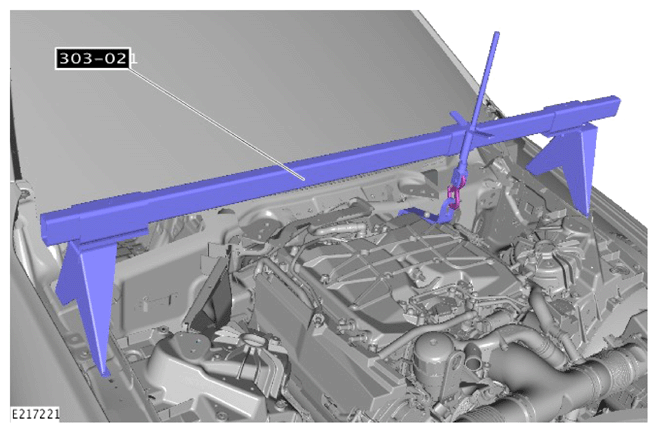

  6. G13885161Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool.

    Special Tool(s): 303-021

  7. Raise and support the vehicle on a suitable 2-post lift.

    Refer to: LIFTING

  8. Remove the starter motor.

    Refer to: STARTER MOTOR

  9. G11305760Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the Emergency Park Release (EPR) cable.

  10. G13946420Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts and 2 clips.
    • Remove the heatshield.
  11. CAUTION: Support the driveshaft at all times to prevent the damage to the centre bearing.

    Disconnect the driveshaft from the rear differential.

    Refer to: DRIVESHAFT TO REAR DIFFERENTIAL DISCONNECTION

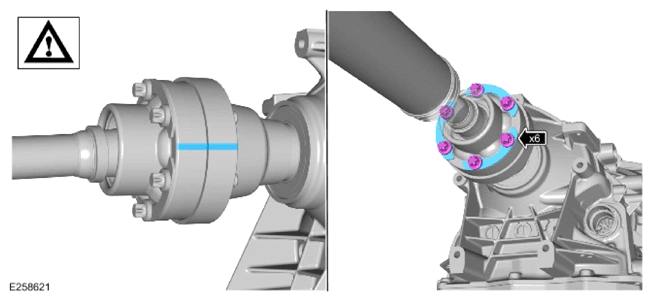

  12. G14006655Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Mark the position of the driveshaft flange in relation to the output flange.
    • Remove and discard the 6 output flange bolts.
  13. WARNING: Make sure that the special tool is installed and used correctly. This will help prevent serious injury and damage to the vehicle and equipment.
    CAUTION:
    • Support the driveshaft at all times to prevent the damage to the centre bearing.
    • Using a suitable hammer and drift, make sure to only hit the corner edges of the special tool to remove the driveshaft.
    • Care must be taken when handling the Constant Velocity joint (CV) joint. Failure to follow this instruction may disassemble the CV  joint.

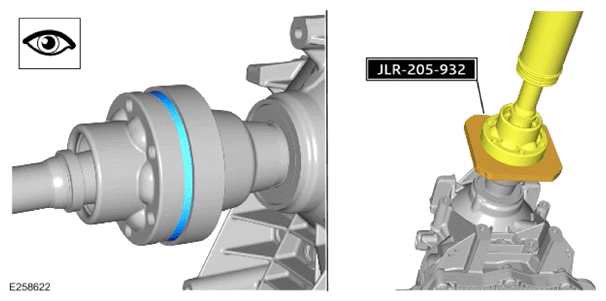

    G13946422Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

      Special Tool(s): 205-932

    • Using the special tool, disconnect the rear driveshaft.
    • Remove the special tool.

      Special Tool(s): 205-932

  14. WARNING: This step requires the aid of another technician.
    G11305765Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts.
    • Remove the rear driveshaft.
  15. Remove the front driveshaft.

    Refer to: FRONT DRIVESHAFT - PROJECT 8

  16. G11286657Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector from the Heated Oxygen Sensor (HO2S).
    • Release the wiring harness from the 3 clips.
  17. G11286674Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector from the HO2S  .
    • Release the wiring harness from the 3 clips.
  18. WARNING: Be prepared to collect escaping fluids.
    G11291983Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the bolt.
    • Release the transmission oil cooler pipes.
    • Discard the 2 O-ring seals.

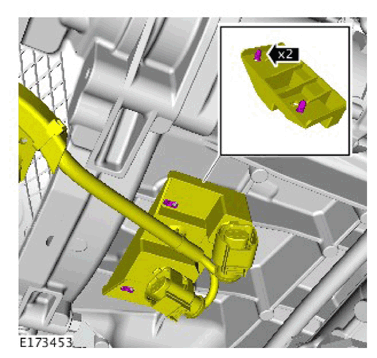

  19. G11298565Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the HO2S  oil pan bracket.

  20. G11292265Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the HOS2 transmission wiring harness bracket.

  21. G13946429Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 Emergency Park Release (EPR) bolts.
    • Release the EPR cable clip.
    • Release the EPR from the transmission lever.

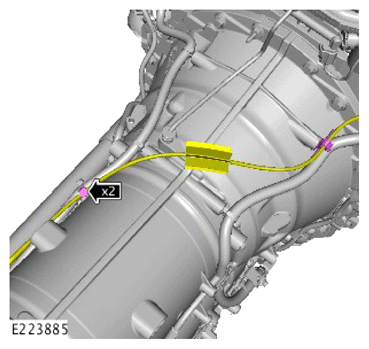

  22. G13946430Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the 2 EPR cable clips.

  23. G11291670Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the access cover.

  24. CAUTION: Only rotate the crankshaft clockwise.
    G11292269Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove and discard the 4 torque converter bolts.

  25. WARNING: Make sure that the transmission is secured with suitable retaining straps.
    G11292278Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using a suitable hydraulic jack, support the transmission.

    General Equipment: Transmission jack

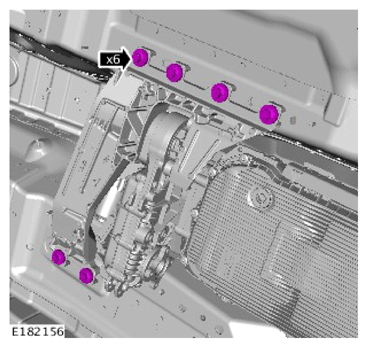

  26. G14006668Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 6 transmission cross member bolts.

  27. CAUTION: Make sure that the transmission is lowered to the value indicated in the illustration.
    G11292280Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Lower the transmission a maximum of 60 mm.

  28. NOTE: Note the orientation of the wiring harness prior to removal.
    G11284090Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts.
    • Release the 3 wiring harness clips.

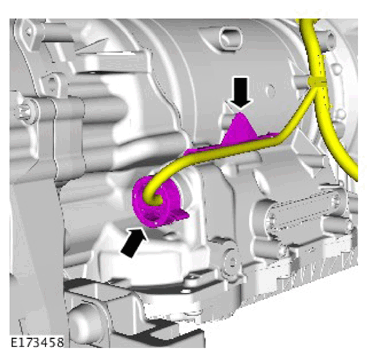

  29. G11298557Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the transmission electrical connector.
    • Release the wiring harness clip.
  30. G11292284Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the 4 transmission wiring harness clips.

  31. G11314295Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts.
    • Release the wiring harness clip.
  32. NOTE: Secure with cable ties.
    G11314315Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector.
    • Release the transmission wiring harness.
  33. G11292285Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 4 left transmission bolts.

  34. G11292286Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 3 right transmission bolts.

  35. WARNING: This step requires the aid of another technician.
    CAUTION: Make sure that the torque converter remains in the transmission.
    NOTE: Secure the torque converter to the transmission using suitable cable ties.
    G11292287Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the transmission.

  36. NOTE: Only do the following step(s) if a new component is to be installed.
    G11292051Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the transmission breather pipe.

  37. G11292003Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the nut.
    • Remove the EPR lever from the transmission.
  38. G11298607Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the transmission plug.

  39. G11314086Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the bolt and the transmission cross member.
  40. G11314316Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • NOTE: Note the orientation of the transfer case bolts prior to removal.

      Using a suitable stand support the transfer case.

      General Equipment: Transmission jack

    • Remove the 6 transfer case bolts.
  41. WARNING: This step requires the aid of another technician.
    G11314317Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the transfer case.

  42. G11292292Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 10 bolts and the transmission bracket.
