General Equipment

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
EQUIPMENT NAME
Transmission jack
WARNING: Be prepared to collect escaping fluids.
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  1. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Remove the engine cover.

    Refer to: ENGINE COVER - V6 S/C 3.0L PETROL

  3. Remove the secondary bulkhead left panel.

    Refer to: SECONDARY BULKHEAD LEFT PANEL - V6 S/C 3.0L PETROL

  4. G11292025Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the clip.
    • Reposition the breather away from the transmission.
  5. G11292026Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 4 bolts.

  6. G11292027Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

      Special Tool(s): 303-1435

    • Install and tighten the bolt.

      Torque  : 25Nm

  7. G11287264Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the engine support bracket.

    Special Tool(s): 303-021

  8. Remove the driveshaft.

    Refer to: FRONT DRIVESHAFT

  9. Remove the exhaust system.

    Refer to: EXHAUST SYSTEM

  10. Remove the starter motor.

    Refer to: STARTER MOTOR

  11. G11286657Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector.
    • Release the wiring harness from the 2 clips.
    • Reposition the wiring harness away from the transmission.
  12. G11286674Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector.
    • Release the wiring harness from the 3 clips.
    • Reposition the wiring harness away from the transmission.
  13. G11291983Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the bolt.
    • Remove and discard the 2 O-ring seals.
    • Reposition the oil cooler pipes away from the transmission.
  14. G11292264Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the nut and bolt.
    • Reposition the ground cable away from the transmission.
  15. G11292265Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 2 clips.

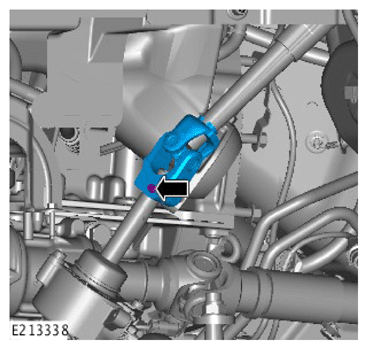

  16. G13988727Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove and discard the bolt.
    • Remove the steering column lower joint.
  17. G11291670Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the access cover.

  18. CAUTION: Only rotate the crankshaft clockwise.
    G11292269Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Rotate the crankshaft to align the torque converter bolts with the access hole.
    • Remove and discard the 4 bolts.
  19. G11284090Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts.
    • Remove the cable from the lever.
    • Reposition the cable away from the transmission.
  20. G11284094Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Secure with a cable tie.
  21. G11284091Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the bolt.
    • Remove the bracket.
  22. G11284092Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Reposition the 2 access covers.

  23. G11284093Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 nuts.
    • Remove the mass damper.
  24. G11284095Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Mark the position of the driveshaft on the transmission flange.
    • Remove and discard the 6 bolts.
  25. WARNING: Make sure that the special tool is installed and used correctly. This will help prevent serious injury and damage to the vehicle and equipment.
    CAUTION:
    • Support the driveshaft at all times to prevent the damage to the centre bearing.
    • Using a suitable hammer and drift, make sure to only hit the corner edges of the special tool to remove the driveshaft.
    • Care must be taken when handling the Constant Velocity joint (CV) joint. Failure to follow this instruction may disassemble the CV  joint.
    G11284096Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

      Special Tool(s): 205-932

    • Using the special tool, disconnect the rear driveshaft.
    • Remove the special tool.

      Special Tool(s): 205-932

  26. G11292093Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the cable tie.
  27. WARNING: Make sure that the transmission is secured with suitable retaining straps.
    G11292278Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using a suitable hydraulic jack, support the transmission.

    General Equipment: Transmission jack

  28. G11314114Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 6 bolts.

  29. CAUTION: Make sure that the transmission is lowered to the value indicated in the illustration.
    G11292280Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Lower the transmission.

  30. NOTE: Secure with cable ties.
    G11292281Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 clips.
    • Remove the 2 bolts.
  31. G11292282Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the electrical connector.

  32. G11292283Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 5 clips.
    • Disconnect the transmission electrical connector.
  33. NOTE: Secure with cable ties.
    G11314119Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 clips.
    • Disconnect the electrical connector.
  34. G11292285Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 bolts.
    • Remove the bracket.
  35. G11292286Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 bolts.
    • Remove the bracket.
  36. WARNING: This step requires the aid of another technician.
    CAUTION:
    • Care must be taken to avoid damaging the surrounding components.
    • Make sure that the torque converter remains in the transmission.
    G11292287Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Secure the torque converter to the transmission using suitable cable ties.
    • With assistance, remove the transmission.
  37. NOTE: Do not disassemble further if the component is removed for access only.
    G11292051Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the breather.

  38. NOTE: This step is only required if a new component is installed.
    G11292004Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the grommet.

  39. G11314086Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the bolt.
    • Remove the bracket.
  40. G11314315Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the wiring harness bracket.
    • Disconnect the electrical connector.
  41. NOTE: Note the orientation of the transfer case bolts prior to removal.
    G11314316Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Using a suitable stand support the transfer case.

      General Equipment: Transmission jack

    • Remove the 6 bolts.
  42. WARNING: This step requires the aid of another technician.
    G11314317Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    With assistance, remove the transfer case.
