General Equipment

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

EQUIPMENT NAME
Engine support beam
Transmission jack

CAUTION:

Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
New transmission assemblies are supplied pre-filled with transmission fluid.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL
Remove the cowl panel.
Refer to: COWL PANEL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the breather.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using a suitable engine support beam support the engine.

General Equipment: Engine support beam
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the breather.
Remove the front driveshaft.
Refer to: FRONT DRIVESHAFT
Remove the starter motor.
Refer to: STARTER MOTOR
Remove the driveshaft.
Refer to: DRIVESHAFT - INGENIUM I4 2.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the transmission fluid cooler pipes support bracket.
CAUTION: Be prepared to collect escaping fluids.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the transmission fluid cooler pipes and discard the O-ring seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the Emergency Park Release (EPR) lever.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the EPR cable from the clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the solenoid electrical connector and remove the retaining bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the 2 transmission wiring harness electrical connectors.
- Release the transmission wiring harness from the 3 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the transmission wiring harness from the 3 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the wiring harness bracket.
NOTE: Only turn the engine in the normal direction of rotation.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the 4 flexplate bolts.
WARNING: Make sure that the transmission is secured with suitable retaining straps.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Using a suitable stand, support the transmission.
  General Equipment: Transmission jack
- Remove the 5 transmission support bolts.
NOTE: Note the orientation of the bolts prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 4 left side transmission to engine bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 4 right side transmission to engine bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 lower transmission to engine bolts.
WARNING: This step requires the aid of another technician.
CAUTION:
- Care must be taken to avoid damaging the surrounding components.
- Make sure that the torque converter remains in the transmission.
NOTE: Secure the torque converter to the transmission using suitable cable ties.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the transmission.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the transmission support insulator.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the breather.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the exhaust mount from the transmission.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the transmission heat shield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the transmission electrical connector and release the 3 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the electrical connector and remove the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the transmission wiring harness.
WARNING: This requires the aid of another technician.

NOTE: Note the orientation of the component prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the transfer case.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

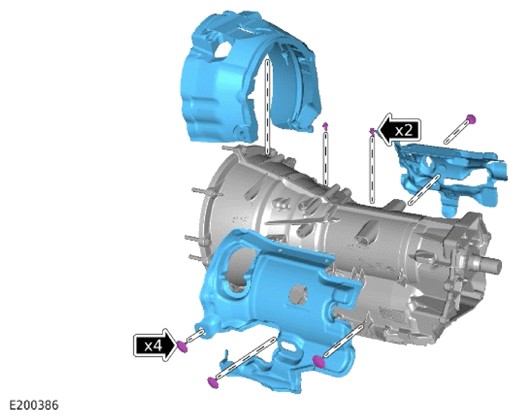

Remove the transmission Noise, Vibration and Harshness (NVH) material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the EPR lever.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the transmission cap.
