Charge Air Cooler
WARNING: This page is about a different car, the 2019 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

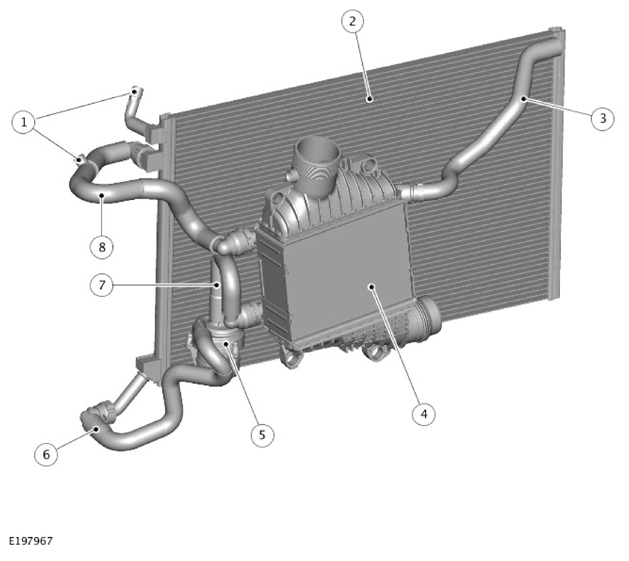

| ITEM | DESCRIPTION |
|---|---|
| 1 | Bleed screw |
| 2 | Charge air radiator |
| 3 | Hose connection - Radiator |
| 4 | Charge air cooler |
| 5 | Charge air coolant pump |
| 6 | Hose - Charge air coolant pump outlet to charge air radiator |
| 7 | Hose - Charge air cooler to charge air cooler pump inlet |
| 8 | Hose - Charge air radiator to charge air cooler |
The charge air cooling system comprises:
- Charge air cooler
- Charge air radiator
- Charge air coolant pump.
The charge air cooler is an air-to-water heat exchanger, providing charge air cooling in combination with an electric coolant pump.
The charge air cooler is used to reduce the intake air temperature which increases the density of the intake air delivered to the combustion chambers.
The charge air cooler has a stand alone cooling system with its own charge air radiator, charge air coolant pump and hoses. The only connection to the main cooling circuit is a pipe from the top of the charge air cooler to the top of the main high temperature cooling circuit radiator. This is used to fill and bleed the system.
For additional information, refer to: INTAKE AIR DISTRIBUTION AND FILTERING
