Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Use a suitable trim tool.
NOTE: Removal steps in this procedure may contain installation details.

All vehicles

  1. Make the air bag supplemental restraint system (SRS) safe. Refer to: Supplemental Restraint System (SRS) Health and Safety Precautions .
  2. Refer to: Battery Disconnect and Connect .
  3. NOTE: This procedure must be carried out on both sides.

    Refer to: Front Row Seat .

  4. G11305693
  5. G11305694
  6. G11305695
  7. G11305696

    Vehicles with manual transmission

  8. G11305697
  9. G11305698

    All vehicles

  10. NOTE: This procedure must be carried out on both sides.
    G11305699

    Vehicles with manual transmission

  11. G11305700

    Vehicles with automatic transmission

  12. G11305701
  13. NOTE:
    • If equipped.
    • Do not disassemble further if the component is removed for access only.

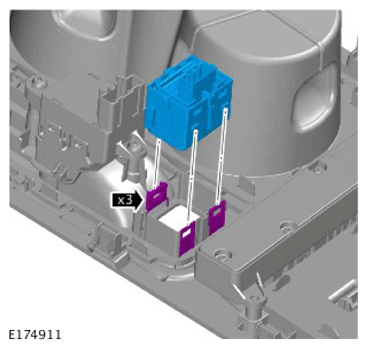

    G11312171

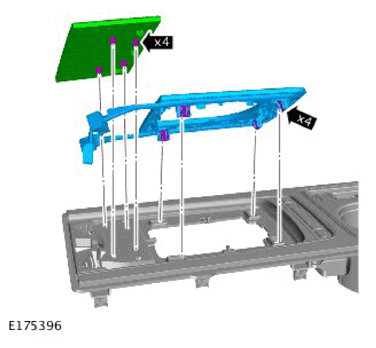

  14. G11312172

    All vehicles

  15. NOTE: Do not disassemble further if the component is removed for access only.
    G11308683
  16. G11305702
