Brake Vacuum Pump - TDV6 3.0L Diesel: Removal

The following step(s) applies to:

All vehicles

1. Disconnect the startup battery ground cable.

   Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

2. Remove the left secondary bulkhead panel.

   Refer to: SECONDARY BULKHEAD LEFT PANEL - TDV6 3.0L DIESEL

3. Drain the cooling system.

   Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING

4. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

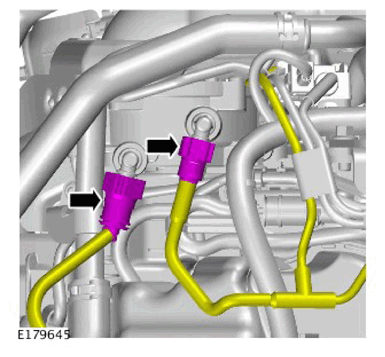

   Disconnect the vacuum hoses from the brake vacuum pump.

   The following step(s) applies to:

   Vehicles with Diesel Exhaust Fluid (DEF)

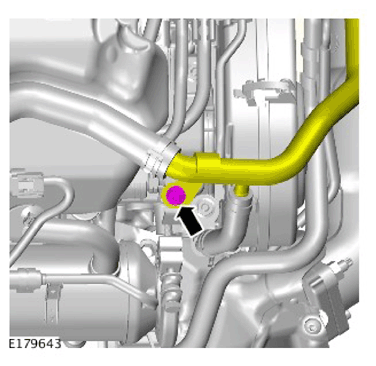

5. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Remove the coolant pipe retaining bolt.

6. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

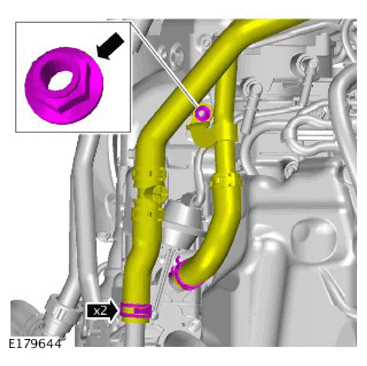

   Remove the nut and release the coolant pipes from the Exhaust Gas Recirculation (EGR) valve.

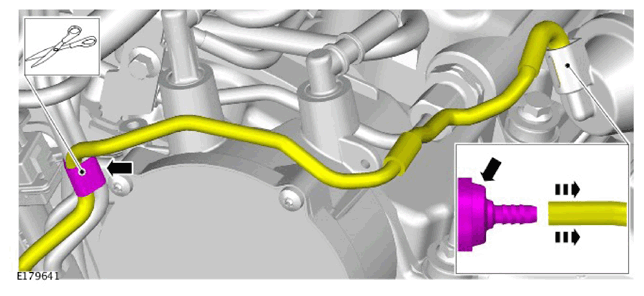

7. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Cut the tape and release the vacuum hose.

   The following step(s) applies to:

   Vehicles without Diesel Exhaust Fluid (DEF)

8. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

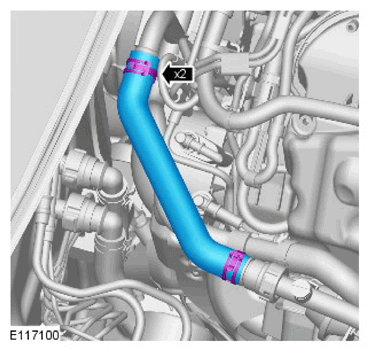

   Remove the coolant hose.

9. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

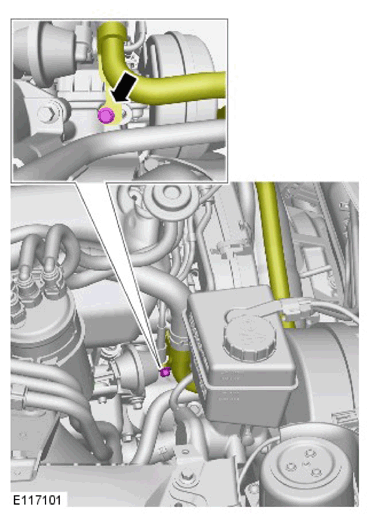

   Remove the coolant hose retaining bolt.

10. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

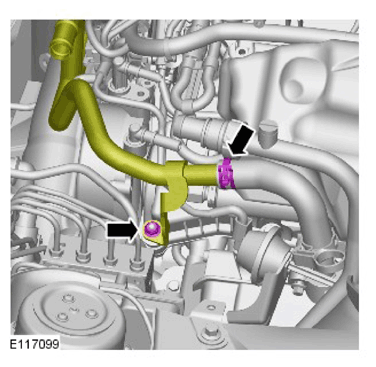

    Remove the nut and release the coolant pipes from the EGR valve.

    The following step(s) applies to:

    All vehicles

11. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

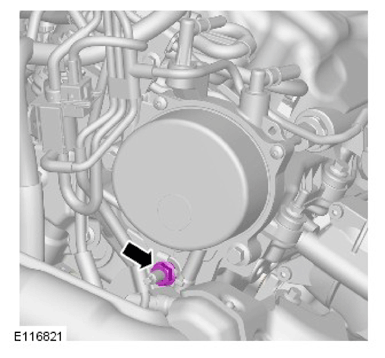

    Remove the vacuum hose retaining bracket nut.

12. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

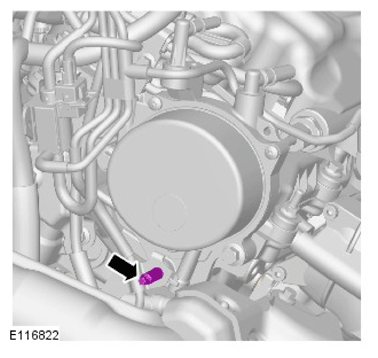

    Remove the brake vacuum pump stud.

13. NOTE: Remove and discard the O-ring seal.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

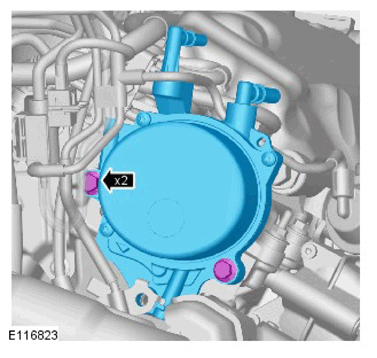

    Remove the brake vacuum pump.
