Brake Vacuum Pump - TDV6 3.0L Diesel: Notes

70.35.48  VACUUM PUMP - RENEW  2000 CC, GTDI  0.30
G11345698Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
70.35.48  VACUUM PUMP - RENEW  2000 CC, INGENIUM DIESEL, 2WD  4.30
G11345697Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
70.35.48  VACUUM PUMP - RENEW  2000 CC, INGENIUM DIESEL, 4WD  5.80
G11345697Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
70.35.48  VACUUM PUMP - RENEW  2000 CC, INGENIUM PETROL, 2WD  4.50
G11345697Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
70.35.48  VACUUM PUMP - RENEW  2000 CC, INGENIUM PETROL, 4WD  6.30
G11345697Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
70.35.48  VACUUM PUMP - RENEW  3000 CC, AJ V6 (AJ126)  1.00
G11345698Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

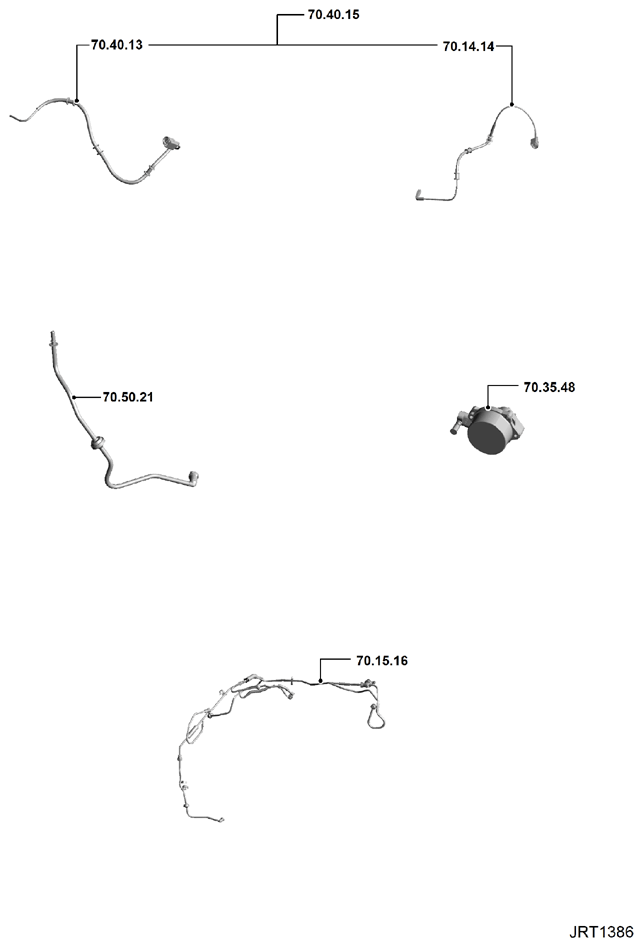

70.35.48  VACUUM PUMP - RENEW  3000 CC, TDV6  2.70
G13966385Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
