Brake Vacuum Pump - TDV6 3.0L Diesel: Installation

The following step(s) applies to:

All vehicles

1. CAUTION: Make sure that the drive coupling is aligned with camshaft coupling.

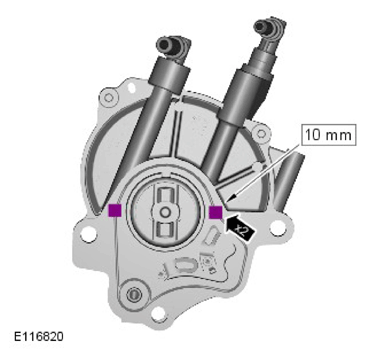

   NOTE: The application of sealant must be 10 mm square in two places. Use silicone gasket sealant or equivalent meeting Land Rover specification.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install a new O-ring seal.

     Renew Part: Brake vacuum pump O-ring seal  Quantity: 1

   • Install the brake vacuum pump immediately after applying the sealant.
2. Install the brake vacuum pump bolts.

   Torque  : 23 Nm

3. Install the brake vacuum pump stud.

   Torque  : 13 Nm

4. Install the vacuum hose retaining bracket nut.

   Torque  : 23 Nm

   The following step(s) applies to:

   Vehicles without Diesel Exhaust Fluid (DEF)

5. Install the EGR crossover pipe.

   Torque  : 9 Nm

6. Install the nut and install the pipes on to the EGR valve.

   Torque  : 9 Nm

7. Install the coolant hose retaining bolt.

   Torque  : 9 Nm

8. Install the coolant hose.

   The following step(s) applies to:

   Vehicles with Diesel Exhaust Fluid (DEF)

9. • Install the vacuum hose.
   • Install a new piece of tape to the pipes.
10. Install the nut and connect the coolant pipes to the Exhaust Gas Recirculation (EGR) valve.

    Torque  : 9 Nm

11. Install the coolant pipe retaining bolt.

    Torque  : 9 Nm

    The following step(s) applies to:

    All vehicles

12. Install the vacuum hoses on to the brake vacuum pump.
13. Fill the cooling system.

    Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING

14. Install the left secondary bulkhead panel.

    Refer to: SECONDARY BULKHEAD LEFT PANEL - TDV6 3.0L DIESEL

15. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
