Brake Booster : Removal

The following step(s) applies to:

Left-hand drive vehicles

1. Refer to: SECONDARY BULKHEAD LEFT PANEL - INGENIUM I4 2.0L DIESEL

   Refer to: SECONDARY BULKHEAD LEFT PANEL - INGENIUM I4 2.0L PETROL

   Refer to: SECONDARY BULKHEAD LEFT PANEL - V6 S/C 3.0L PETROL

   Refer to: SECONDARY BULKHEAD LEFT PANEL - TDV6 3.0L DIESEL

   The following step(s) applies to:

   All vehicles

2. Refer to: BRAKE MASTER CYLINDER

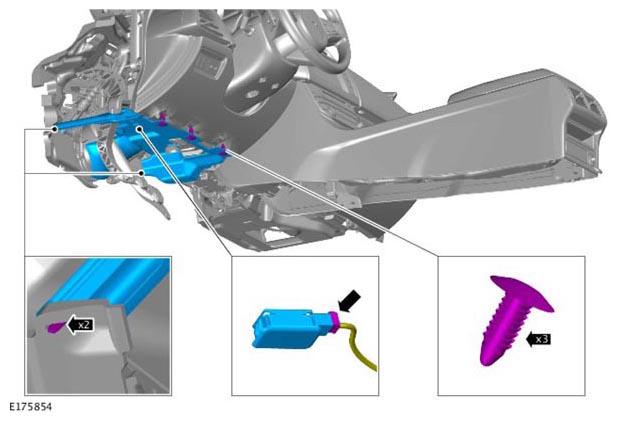

3. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

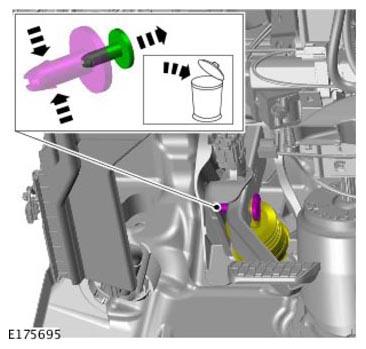

4. CAUTION: Discard the component.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Renew Part: Clutch pedal clevis pin  Quantity: 1.

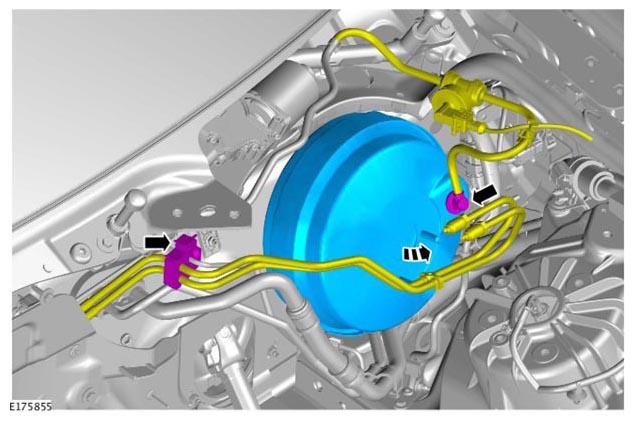

5. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque  : 25 Nm

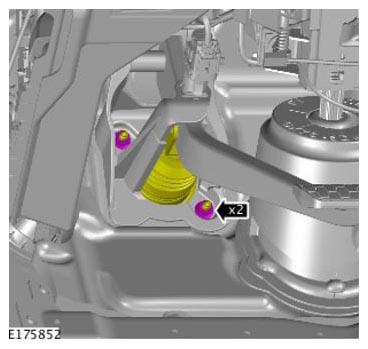

6. CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Remove the brake booster.
