Brake Booster : Notes

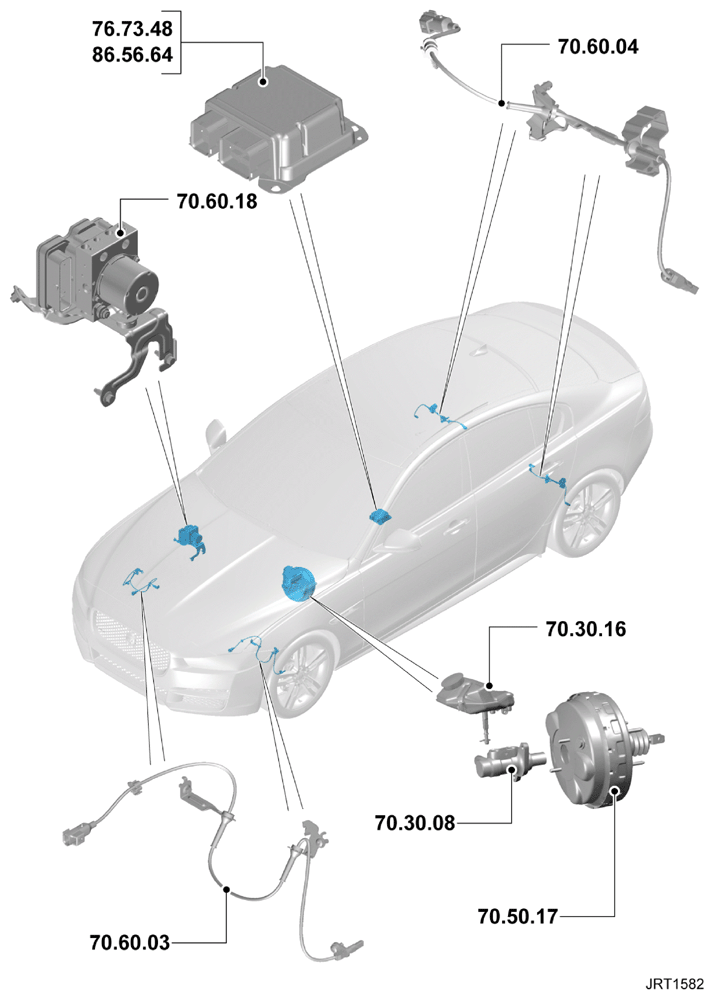

70.50.17  BRAKE BOOSTER - RENEW  LEFT HAND DRIVE, 2000 CC, GTDI  1.80
G13892223Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
70.50.17  BRAKE BOOSTER - RENEW  LEFT HAND DRIVE, 2000 CC, INGENIUM DIESEL  1.90
G13892223Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
70.50.17  BRAKE BOOSTER - RENEW  LEFT HAND DRIVE, 2000 CC, INGENIUM PETROL  1.40
G13892223Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
70.50.17  BRAKE BOOSTER - RENEW  LEFT HAND DRIVE, 3000 CC, AJ V6 (AJ126)  1.80
G13892223Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
70.50.17  BRAKE BOOSTER - RENEW  LEFT HAND DRIVE, 3000 CC, TDV6  3.20
G13892223Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
