INGENIUM I4 2.0L Diesel Engine

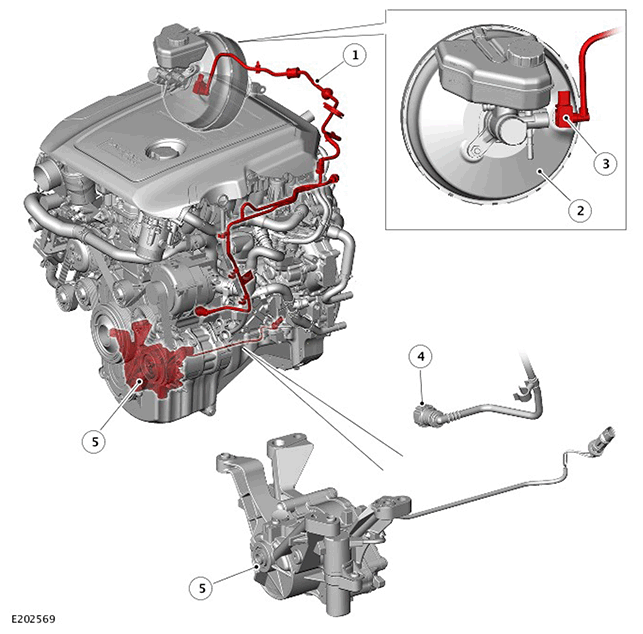

G11439952Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC


ITEM DESCRIPTION
1 Vacuum Pipe
2 Brake Booster
3 Brake vacuum sensor
4 Vacuum connector
5 Variable Flow Oil Pump with Integral Vacuum Pump
