Secondary Bulkhead Left Panel - INGENIUM I4 2.0L Petrol (G2020320): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the secondary bulkhead right panel.
Refer to: SECONDARY BULKHEAD RIGHT PANEL - INGENIUM I4 2.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove 4 bolts.
- Remove the engine compartment brace.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the brake booster vacuum hose quick release connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the fir tree clip.
- Release the coolant pipe from the 3 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the coolant pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the coolant pipe.
- Remove the coolant pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the coolant pipe.
- Release the fir tree clip.

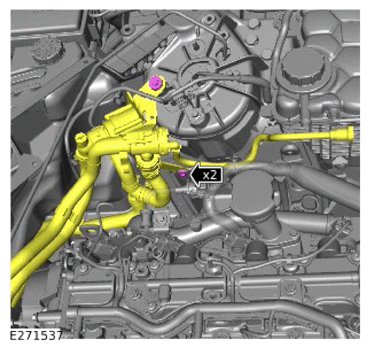

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Reposition the auxiliary coolant pump assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
